48V Magnetic Track Lighting Connector (IKON-MAG-P)
48V Magnetic Track Lighting Connector (IKON-MAG-P)
Regular price
$10.00 CAD
Regular price
Sale price
$10.00 CAD
Quantity
Couldn't load pickup availability

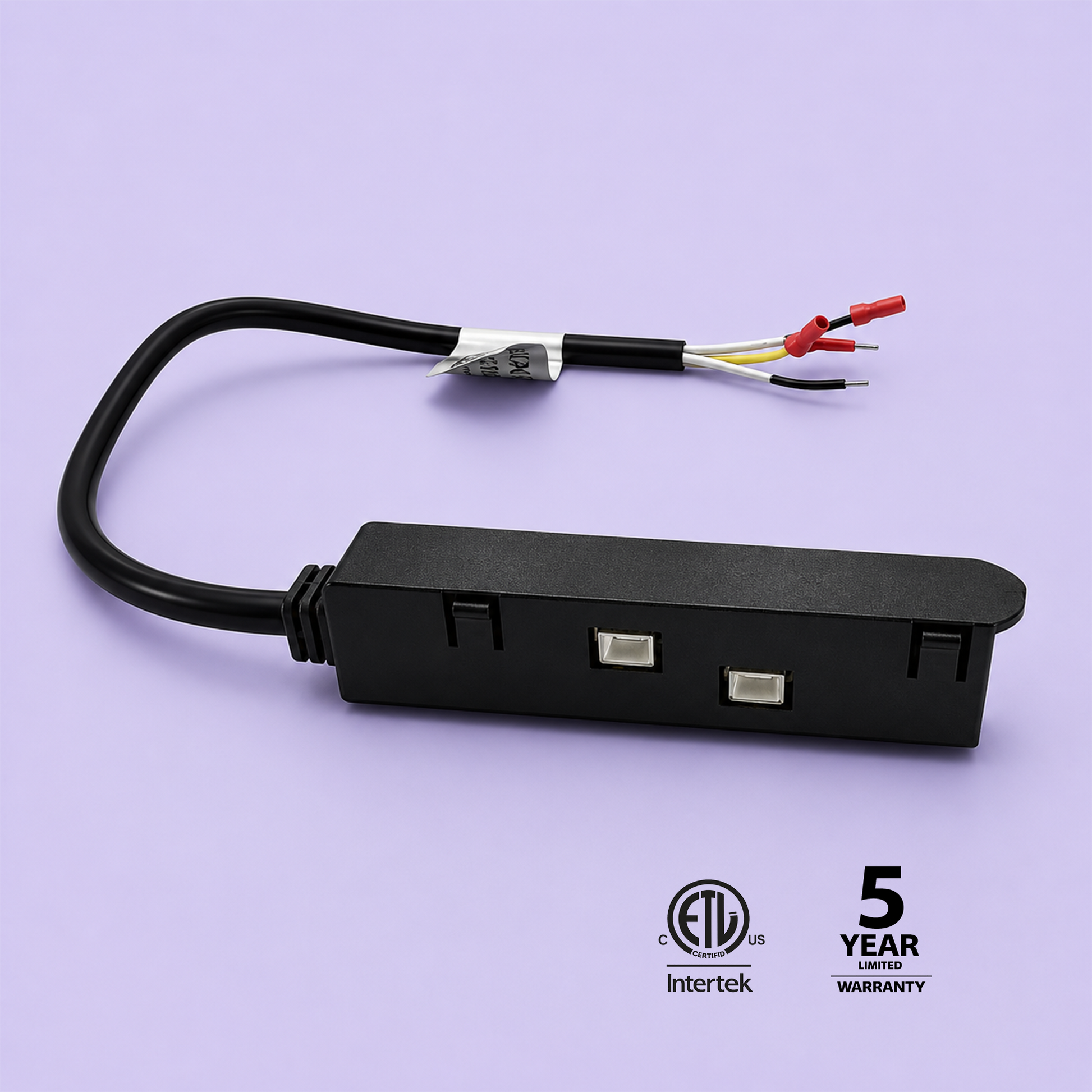

The 48V Magnetic Track Lighting Connector (IKON-MAG-P) is a power feed / live end connector designed to connect your 48V DC driver to the Slim Series magnetic track system. It serves as the primary power entry point, securely delivering low-voltage electricity from the external power supply to the rail to illuminate the magnetic fixtures. This component is compatible with 48V magnetic track systems featuring an internal slot width of 0.71"(17mm–18mm), supports a maximum power load of 100W, and is ETL certified (UL 1574 & CSA C22.2) to meet professional safety and building standards.
Dimensions: 3.74"(95mm )(L) x 0.63"(16mm) (W) x 0.8(20mm) (H) - (1 piece).
L cable 13"(330mm)
Power Feed / Live End (to connect your 48V driver).
Voltage: 48V DC (Safe Low Voltage).
Max Load: 100W per line.
Safety Standards: ETL Listed (Conforms to UL STD. 1574 & CSA STD. C22.2).
Compatibility: Fits magnetic tracks with an internal slot width of 0.71"(17mm - 18mm).
Warranty: 5 years
Certifications: ETL
