Satin Steel Ball Bearing iKON-F202 Hinges for Interior Doors (102x102x3mm)

iKON-F202 Single Spring Self-Closing Door Hinge4 in x 4in x (102x102x3mm) - Satin Stainless Steel

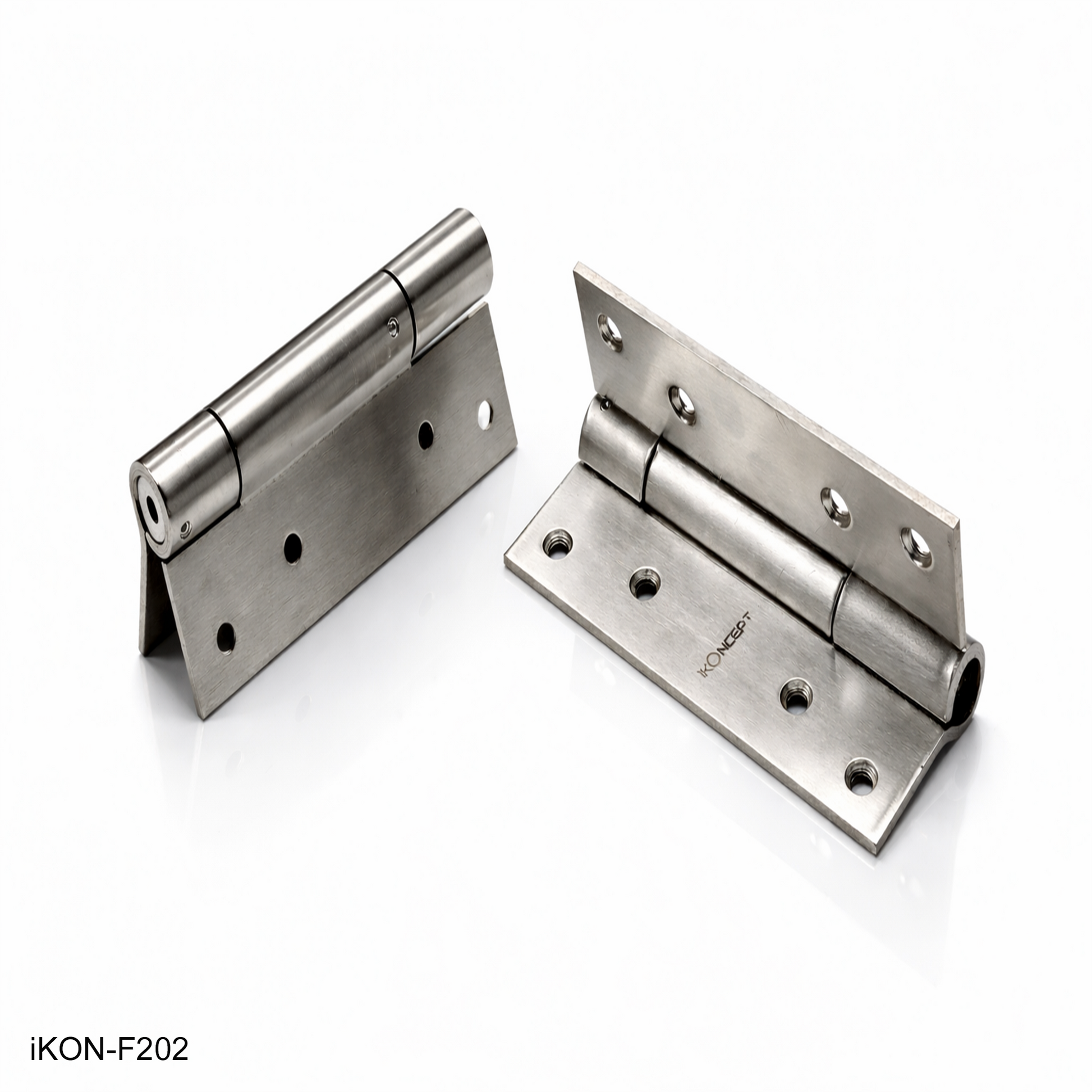

The iKON-F202 single spring hinge combines the functions of a standard end hinge with a built-in self-closing mechanism. Designed for convenience and safety, this hinge automatically ensures that your door returns to the closed position, making it ideal for doors that require automatic closing without the need for a separate closer.

Key Features:
Self-Closing Functionality: Features an internal, high-tension single spring that effortlessly closes the door automatically. Perfect for utility rooms, fire-rated internal doors, and rooms requiring constant door closure.

Superior Durability: Constructed from premium Stainless Steel, providing excellent resistance to corrosion, wear, and rust for long-lasting performance.

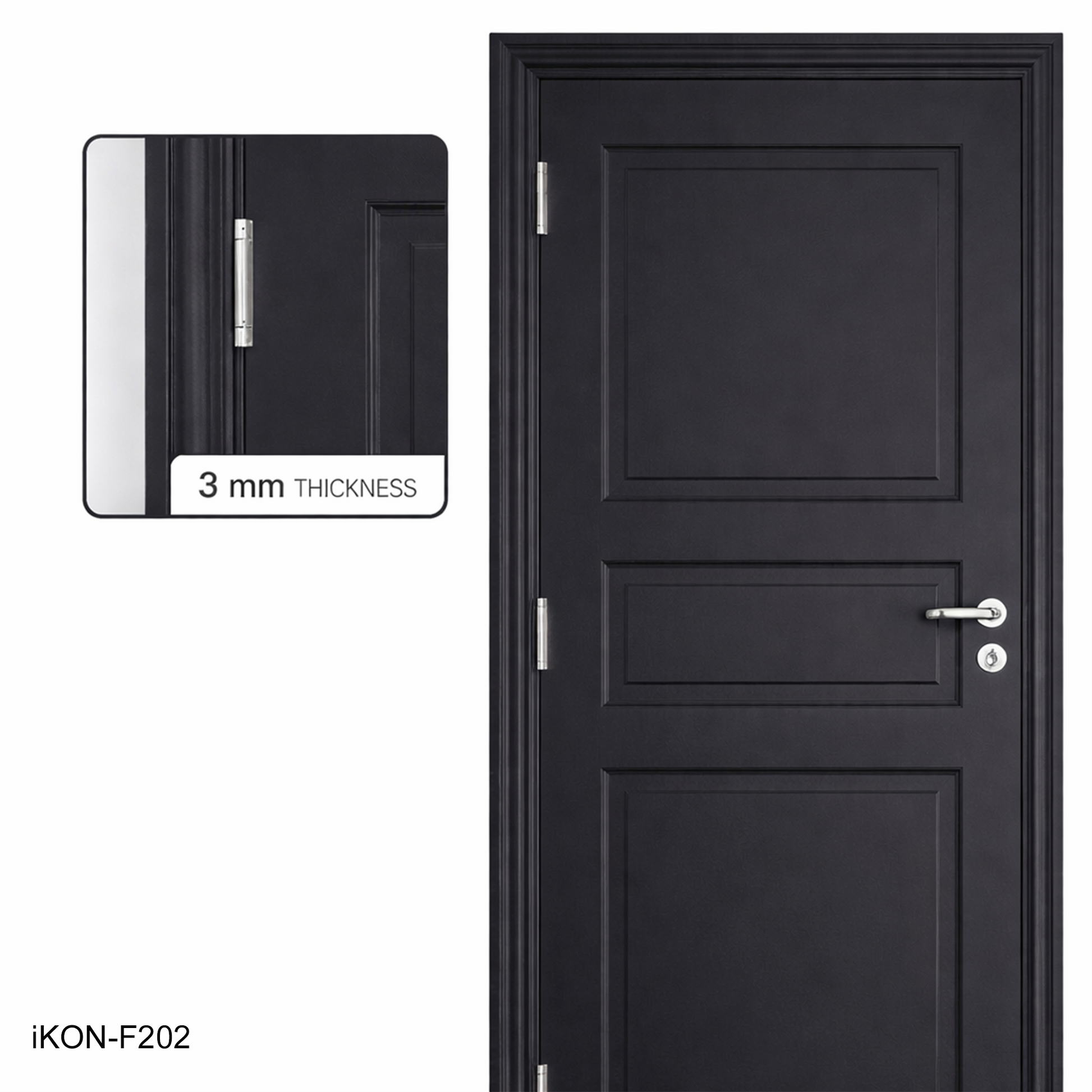

Heavy-Duty Build: With a substantial 3mm leaf thickness, this hinge is engineered for robust stability and will not warp under the weight of standard solid-core doors.

Sleek, Modern Aesthetic: The Satin Stainless Steel finish provides a sophisticated, non-reflective surface that resists fingerprints and matches perfectly with modern architectural hardware.

Quiet and Smooth: Engineered for smooth, frictionless operation, preventing unwanted noise and door slamming.

Technical Specifications:
Product Code: iKON-F202

Type: Single Spring Hinge / Self-Closing Butt Hinge

Dimensions: 4 in x 4 in (~102 mm x 102 mm)

Leaf Thickness: 0.118 in (3 mm) (Heavy-duty construction)

Knuckle Diameter: Ø 0.748 in (19 mm)

Material: Stainless Steel

Finish: Satin Stainless Steel (Silver)

Hole Pattern: Standard 8-hole template for secure mounting.

Perfect For:
Commercial office interior doors requiring automatic closure.

Fire doors and utility room doors.

Apartment entrance doors (where specified by local regulations).

Package Includes:
iKON-F202 Spring Hinge (as shown in the image).

Matching high-strength mounting screws.

Adjustment Tool (typically included with spring hinges to set tension, please verify if included in your kit).

Marketing Summary:
The iKON-F202 Single Spring Hinge offers a 2-in-1 solution: a durable Stainless Steel hinge with an integrated self-closing mechanism. Eliminate door closers and enjoy silent, automatic closure with this heavy-duty (3mm thick) and elegantly finished Satin Stainless Steel hinge, perfect for demanding commercial and residential internal applications.
