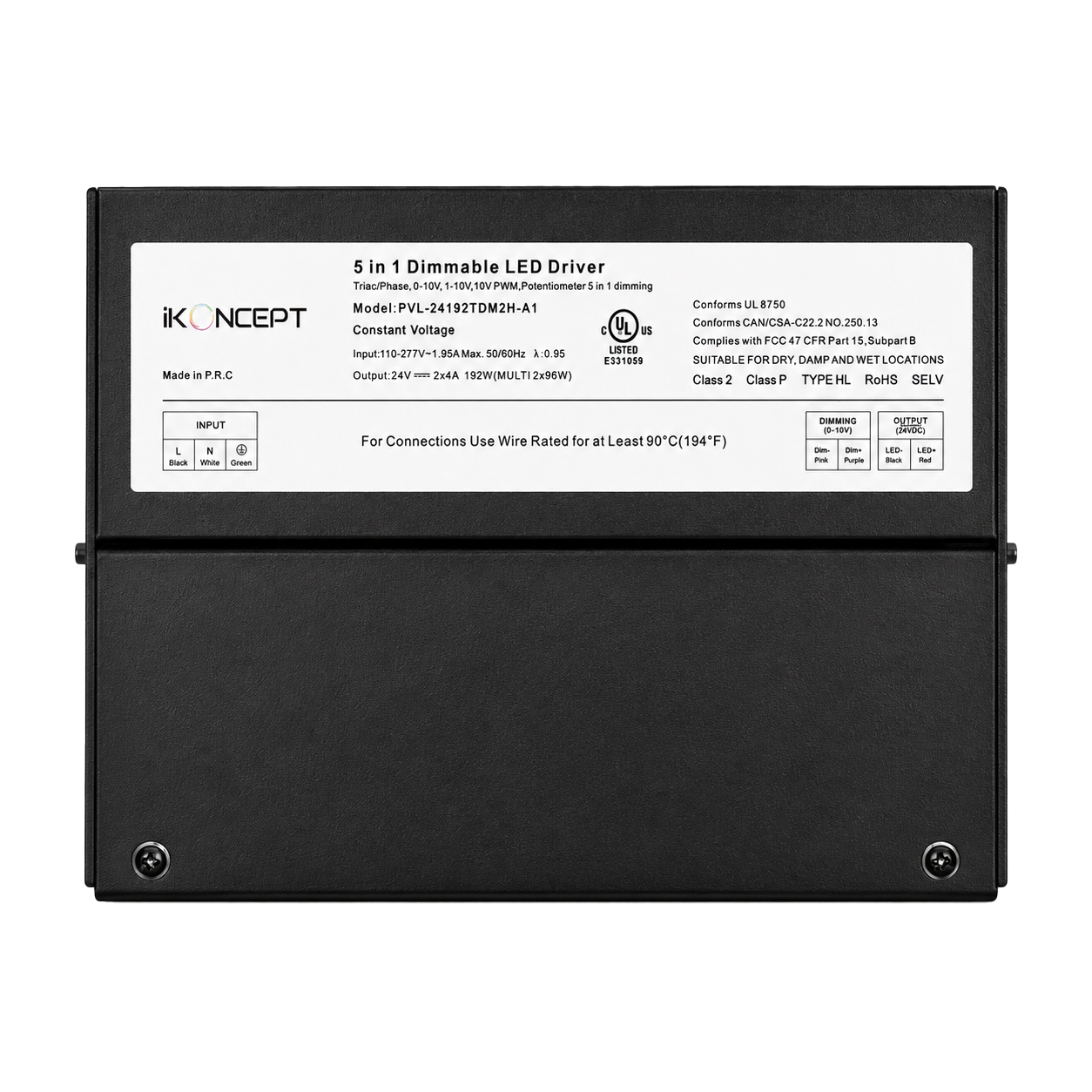

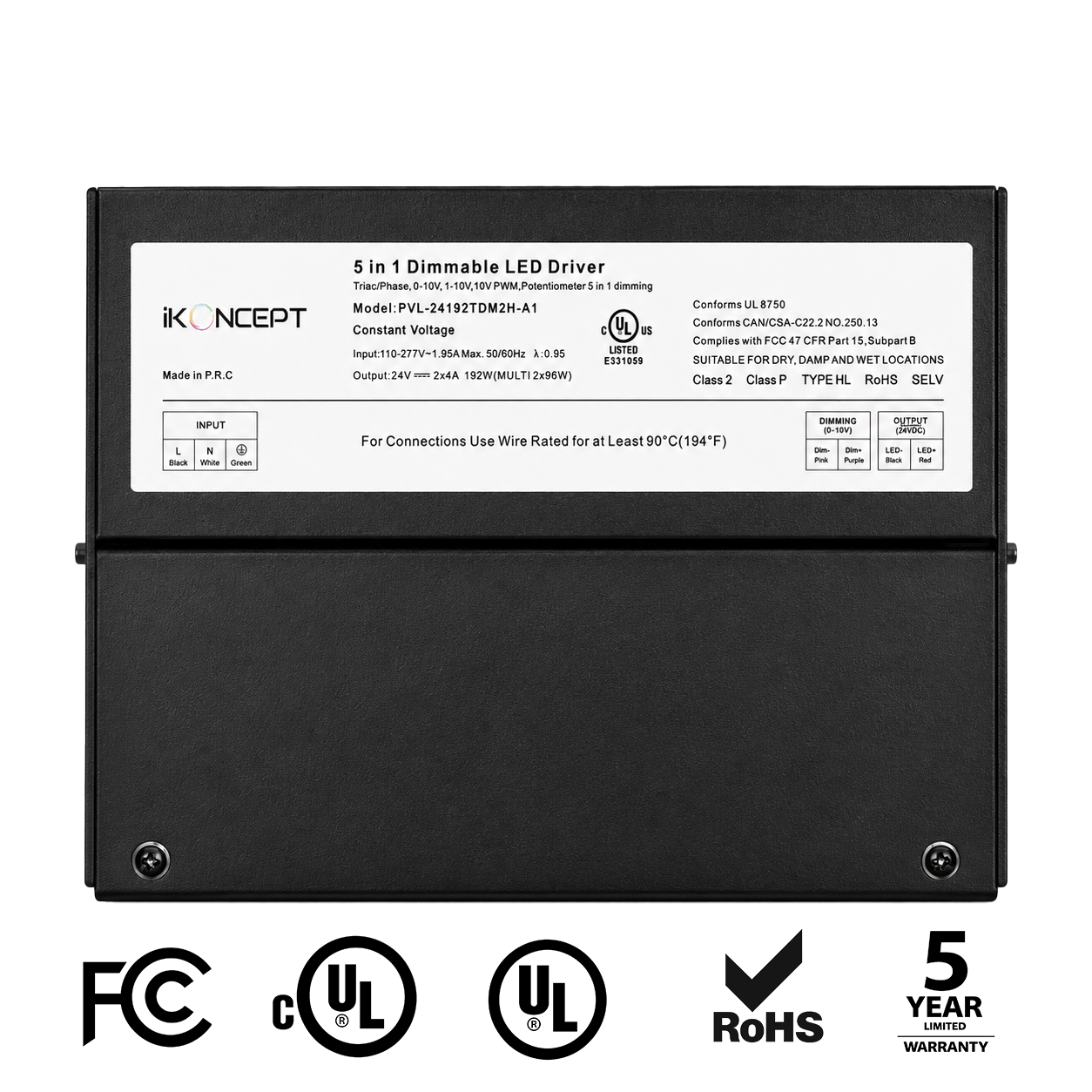

192W 24V 2-Channel Dimmable LED Driver (5-in-1 Multi-Function) iKON-PVL-24192TDM2H-A1

192W 24V 2-Channel Dimmable LED Driver (5-in-1 Multi-Function)

Model: iKON-PVL-24192TDM2H-A1
Constant Voltage
Multi-Output (2 x96)

High-capacity 192W Dimmable LED Driver. This  power supply delivers massive power split across two independent 96W Class 2 channels. This unique design allows you to run high-wattage lighting systems safely and legally without violating Class 2 voltage and power regulations.Equipped with a 5-in-1 universal dimming interface and certified.

Key Features:
Dual-Channel Safety (2 times 96 x 2 times 4A): Engineered with two separate 96W outputs. This layout ensures full compliance with the Class 2 power limitations while providing a total of 192W from a single junction box.
5-in-1 Universal Dimming : Eliminates compatibility guesswork. Seamlessly integrates with Triac/Phase-cut (forward/reverse phase), 0-10V, 1-10V, 10V PWM, and Potentiometer controls.

Ultra-High Efficiency & Cool Operation: Features a power factor (PFC  0.95) and an exceptional 89%-91% efficiency rating, keeping operating temperatures low and drastically reducing energy loss.

Technical Specifications:
Model: PVL-24192TDM2H-A1
Total Output: Power 192W Max
Output Configuration:

• Multi-Output: 2 x times 96W (2 x4AGroups) Input Voltage (AC)
• 110 – 277V AC, 50/60Hz (Universal Input)

Output Voltage (DC): 24V DC (Constant Voltage)
Power Factor (PF): 0.95
Efficiency Range: 89% - 91%
Safety Ratings: Class 2 (per channel), Class P, TYPE HL, SELV

Certifications: cULus Listed, FCC Part 15 Subpart B, RoHS CompliantWiring Requirements Use wire rated for at least 90°C (194°F)
5 Years Warranty
