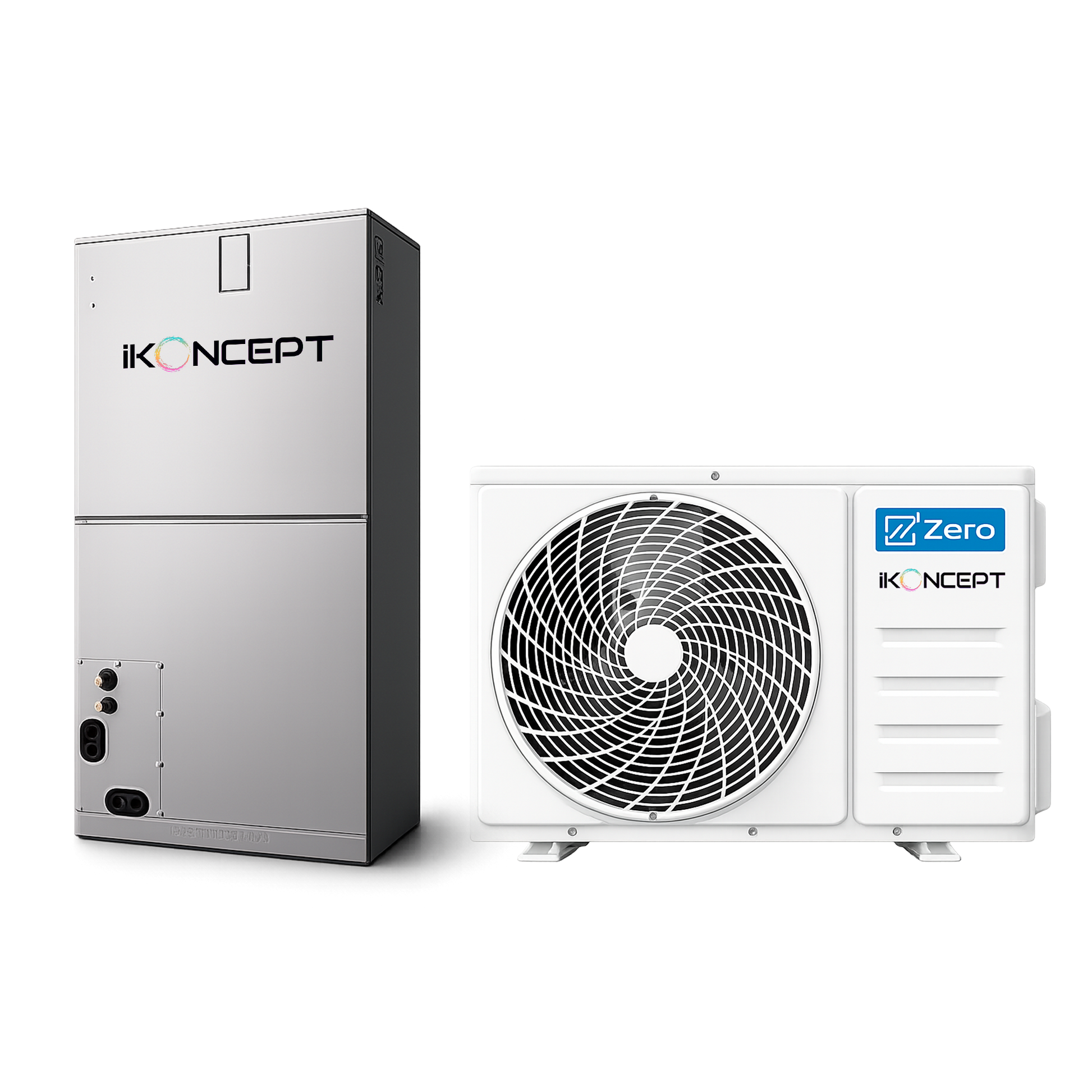

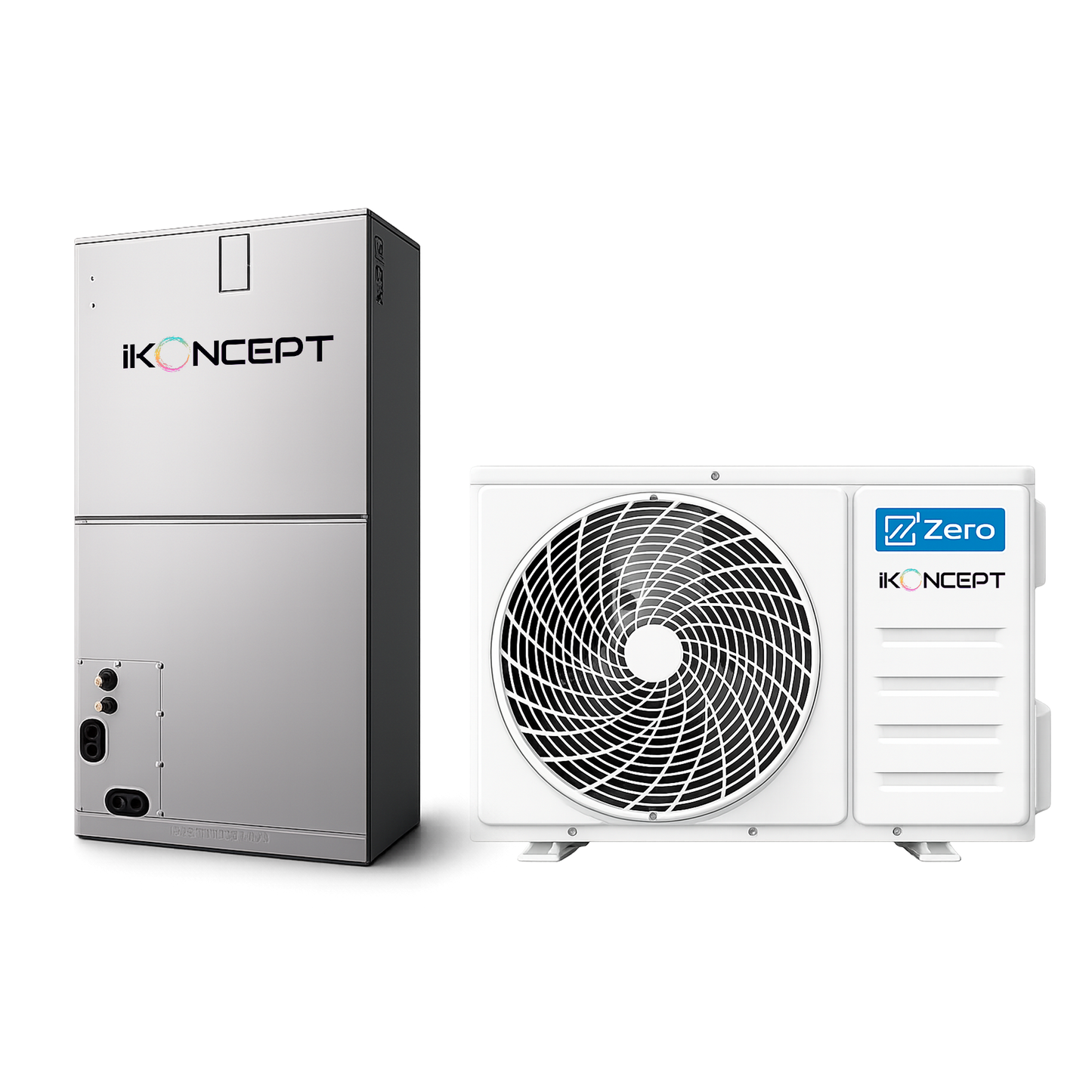

iKON Z-ULTRA R454B Inverter Heat Pump and Air Handler System IKON-ZAVA-48HDMB-US

iKON Z-ULTRA R454B Inverter Heat Pump and Air Handler System

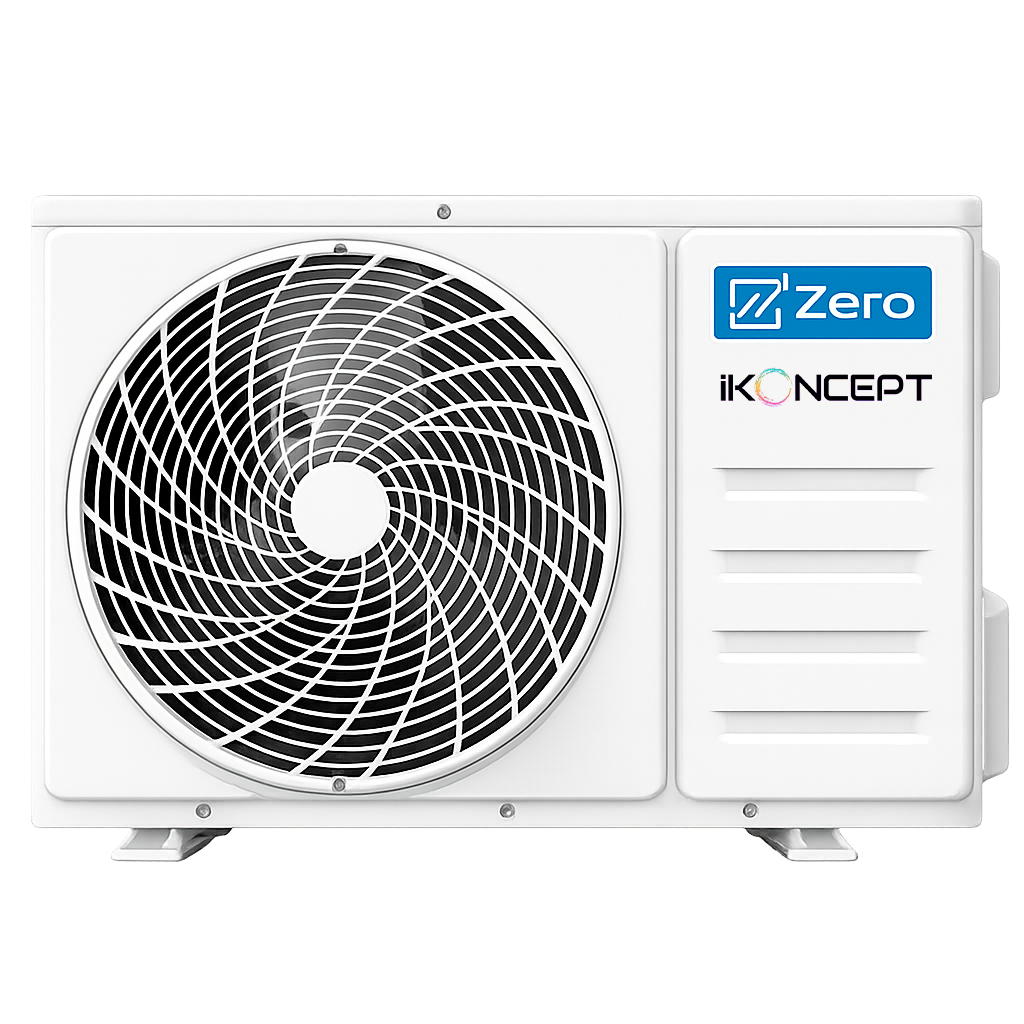

Models: IKON-ZAVA-48HDMB-US (Indoor Air Handler) / IKON-ZSOVA-48HDMB-US (Outdoor Heat Pump)
Type: cooling & heating
Certification:
R454B Green Hydrogen - The Most Sustainable and Future-Proof Gas
High-performance heating
ALL-INCLUSIVE SYSTEM 5-YEAR WARRANTY

The iKON Z-ULTRA R454B Inverter Heat Pump and Air Handler System is a high-performance, ducted heating and cooling solution engineered to deliver year-round comfort, exceptional energy efficiency, and reliable operation. Utilizing advanced DC inverter technology and environmentally friendly R454B refrigerant, the system precisely adjusts compressor speed to maintain consistent indoor temperatures while reducing energy consumption and operating costs.
Designed for both new installations and retrofit applications.
The advanced inverter compressor continuously modulates capacity to match the home's heating or cooling demand, providing quieter operation, improved humidity control, and enhanced comfort. Combined with ZERO's intelligent control algorithms, the system delivers stable room temperatures, optimized airflow, and efficient performance throughout every season.

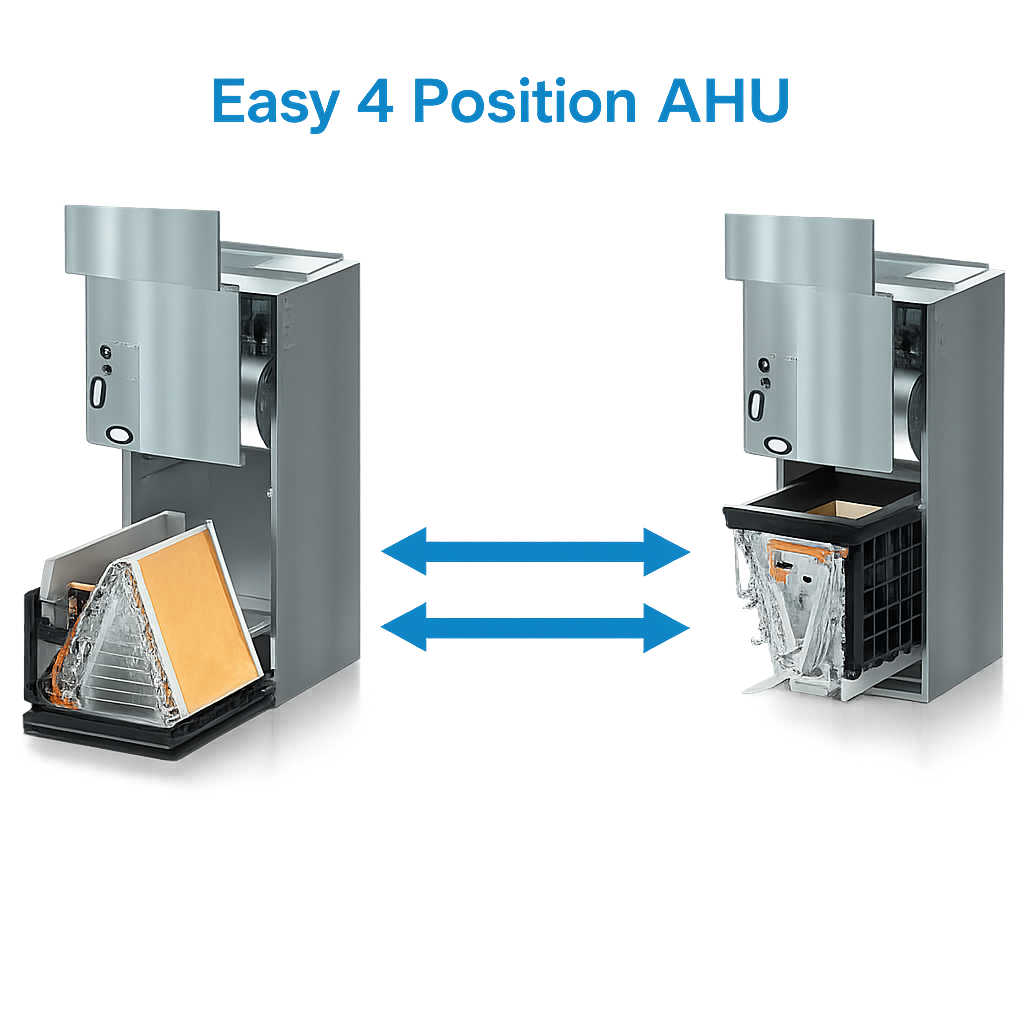

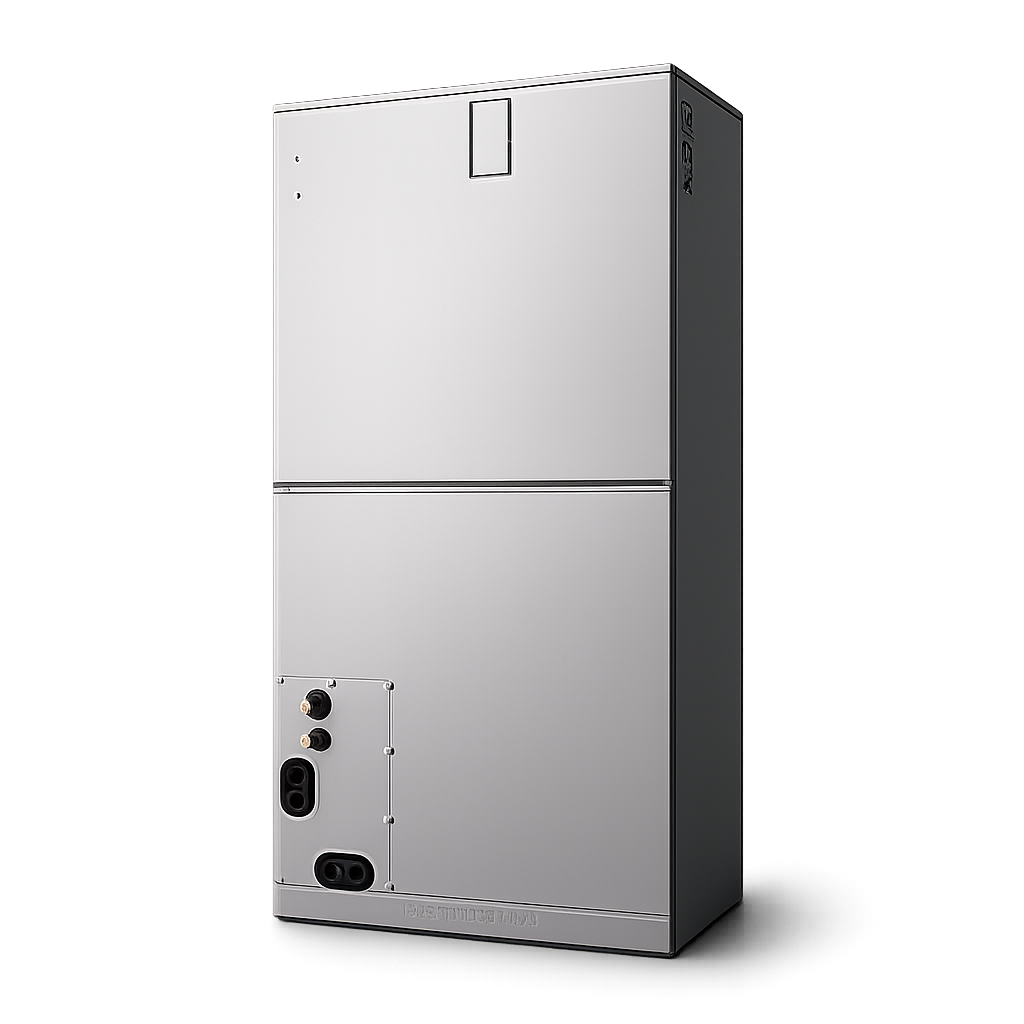

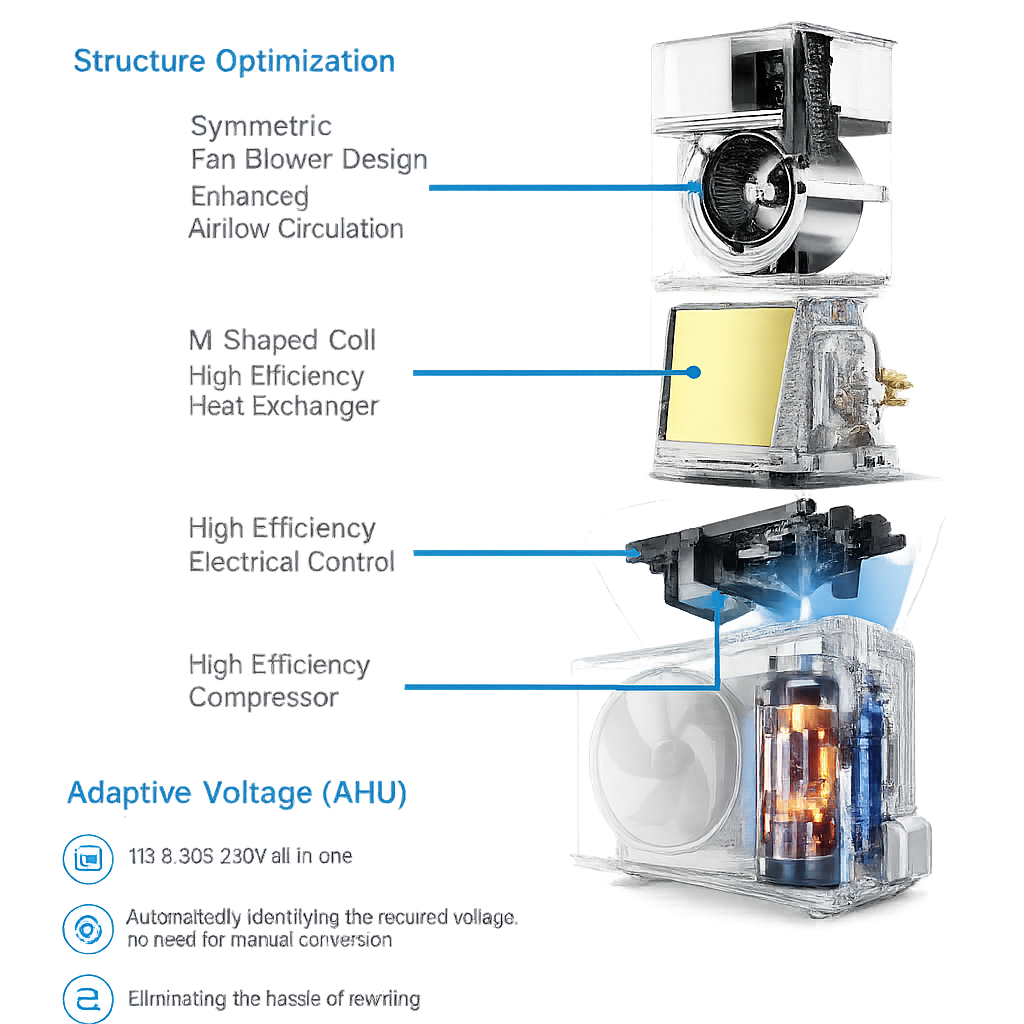

The indoor air handler offers flexible installation with four mounting positions (upflow, downflow, horizontal left, and horizontal right) and features a high-efficiency M-shaped evaporator coil, symmetrical centrifugal blower, and computational constant airflow control for balanced air distribution and maximum comfort.
Engineered for cold-climate performance, the Z-ULTRA Hyper Heat version is capable of delivering 100% heating capacity at -4°F (-20°C) and continues providing reliable heating even in severe winter conditions.
Installation and servicing are simplified through several innovative features, including:
Two-wire non-polarity wired controller support
Easy-access electrical connection board with miswiring protection
Adaptive 115V / 208-230V voltage recognition (air handler)
Built-in condensate pump
Refrigerant leak detection sensor for enhanced safety
Expandable electric heater compatibility
Wi-Fi ready smart control capability
Intelligent self-cleaning (iClean) function
Additional design improvements include reduced equipment footprint for easier transportation and installation, optimized internal airflow, high-efficiency electronic controls, and a durable inverter compressor designed for long service life.
The iKON Z-ULTRA R454B system combines advanced inverter technology, flexible installation options, intelligent controls, and environmentally responsible refrigerant to provide an efficient, reliable, and comfortable heating and cooling solution for modern residential and light commercial applications.

Technical Specifications
