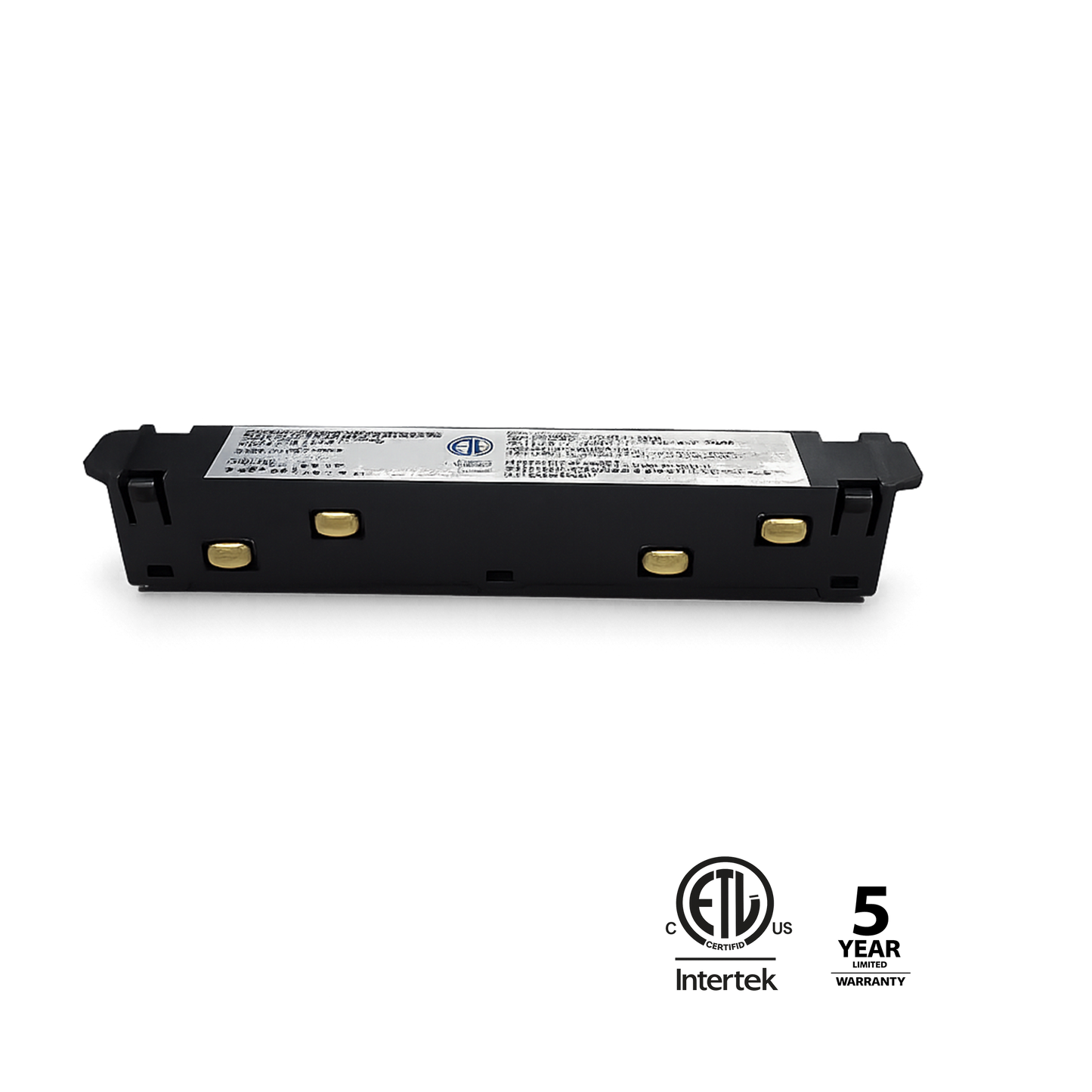

48V Magnetic Track Lighting Connector IKON-MAG-S

The 48V Magnetic Track Lighting Connector (IKON-MAG-S) is an internal straight joiner designed to mechanically link and provide electrical continuity between two segments of the Slim Series magnetic track. It is used to create a seamless straight-line extension of the rail, fitting entirely inside the profile to maintain a clean, invisible connection. This connector is compatible with 48V DC magnetic track systems featuring an internal slot width of 17mm–18mm, supports a maximum power load of 100W, and is ETL certified (UL 1574 & CSA C22.2) for guaranteed safety and performance.

Title: 48V Magnetic Track Lighting Connector - 16mm Slim Series - ETL Certified
Dimensions: 4.72"(120mm) (L) x 0.63(16mm) (W) x 0.8"(20mm) (H)
Voltage: 48V DC (Safe Low Voltage)
Internal Straight Joiner (for seamless rail extension)
Max Load: 100W per line
Safety Standards: ETL Listed
Compatibility: Fits magnetic tracks with an internal slot width of 0.71"(17mm - 18mm)
Warranty: 5 years
