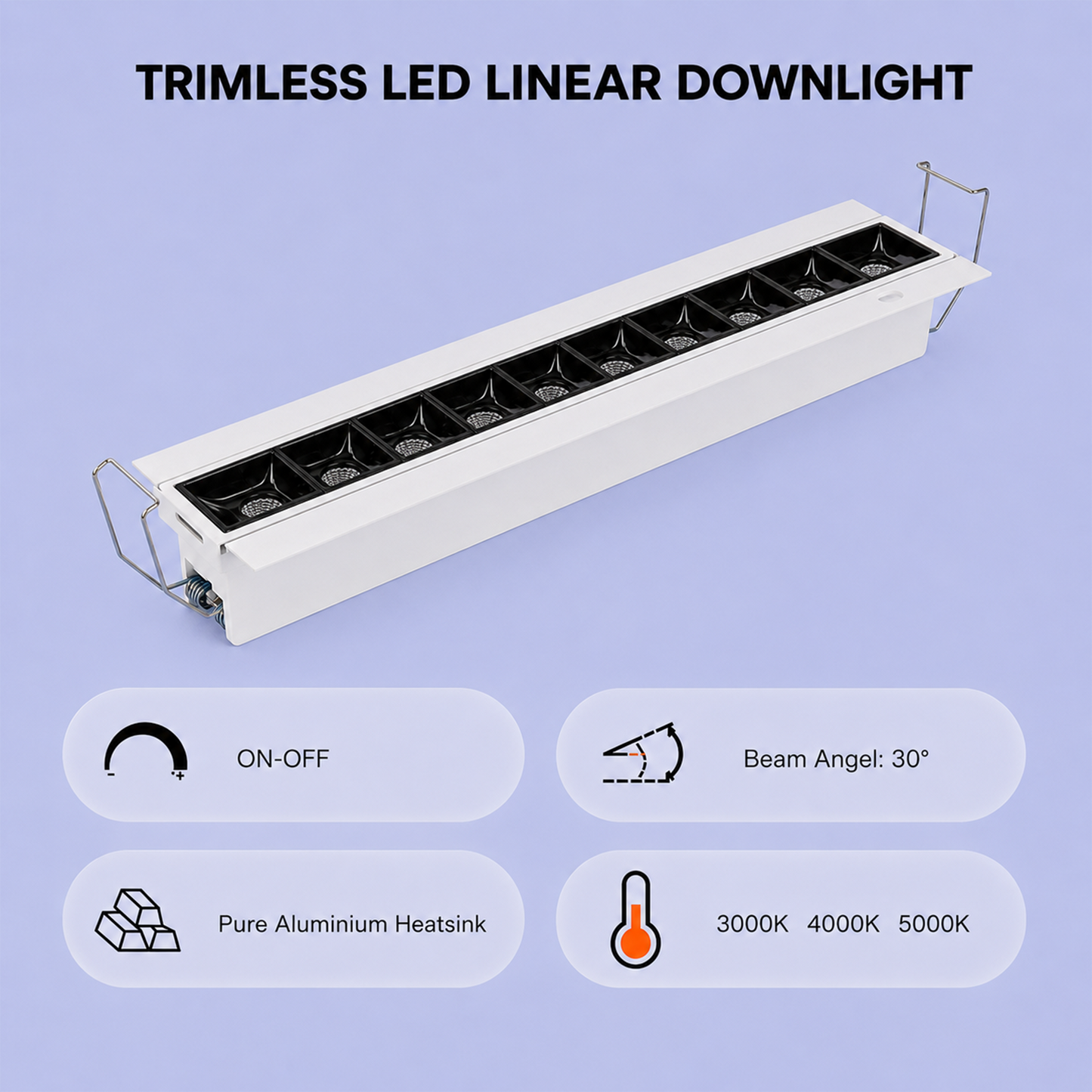

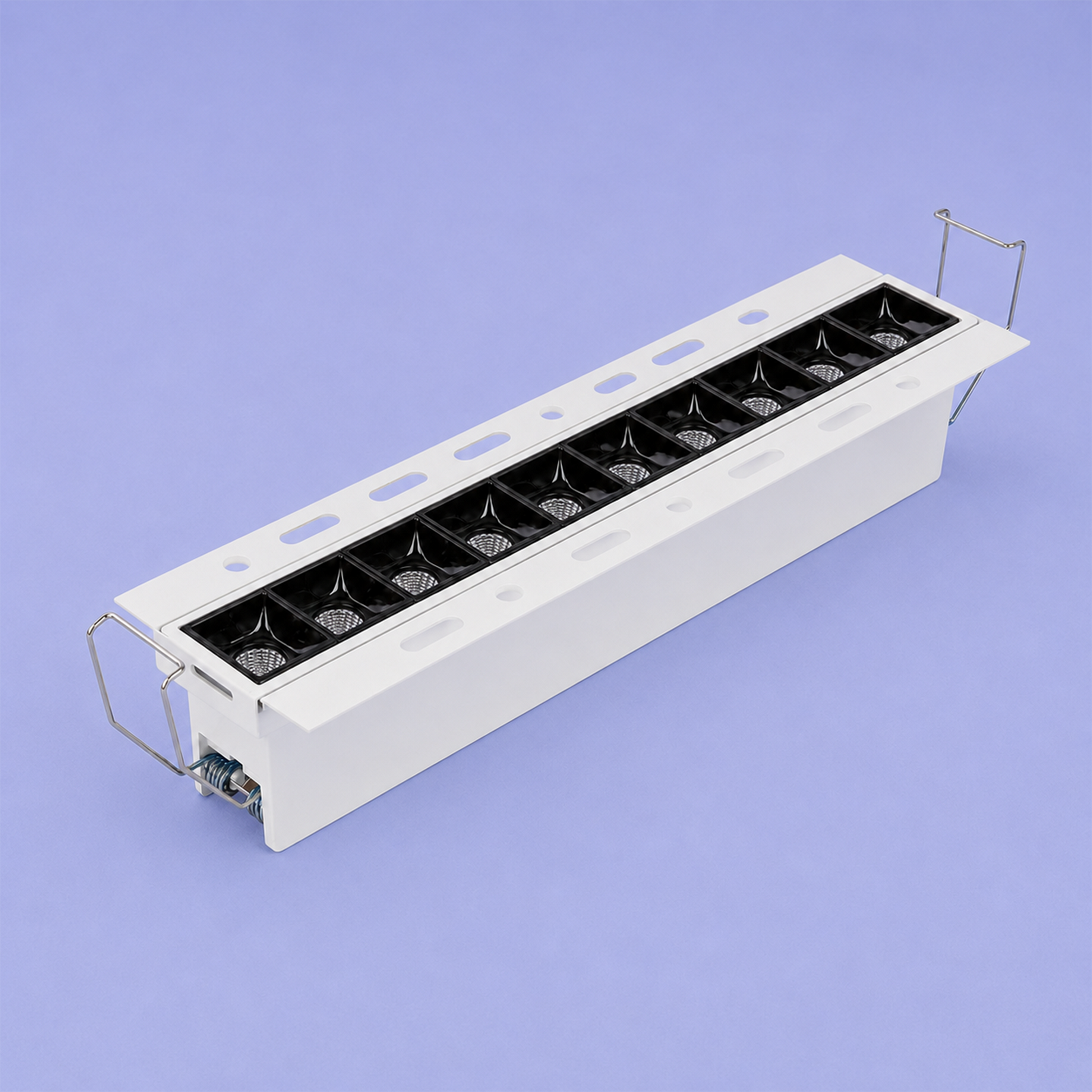

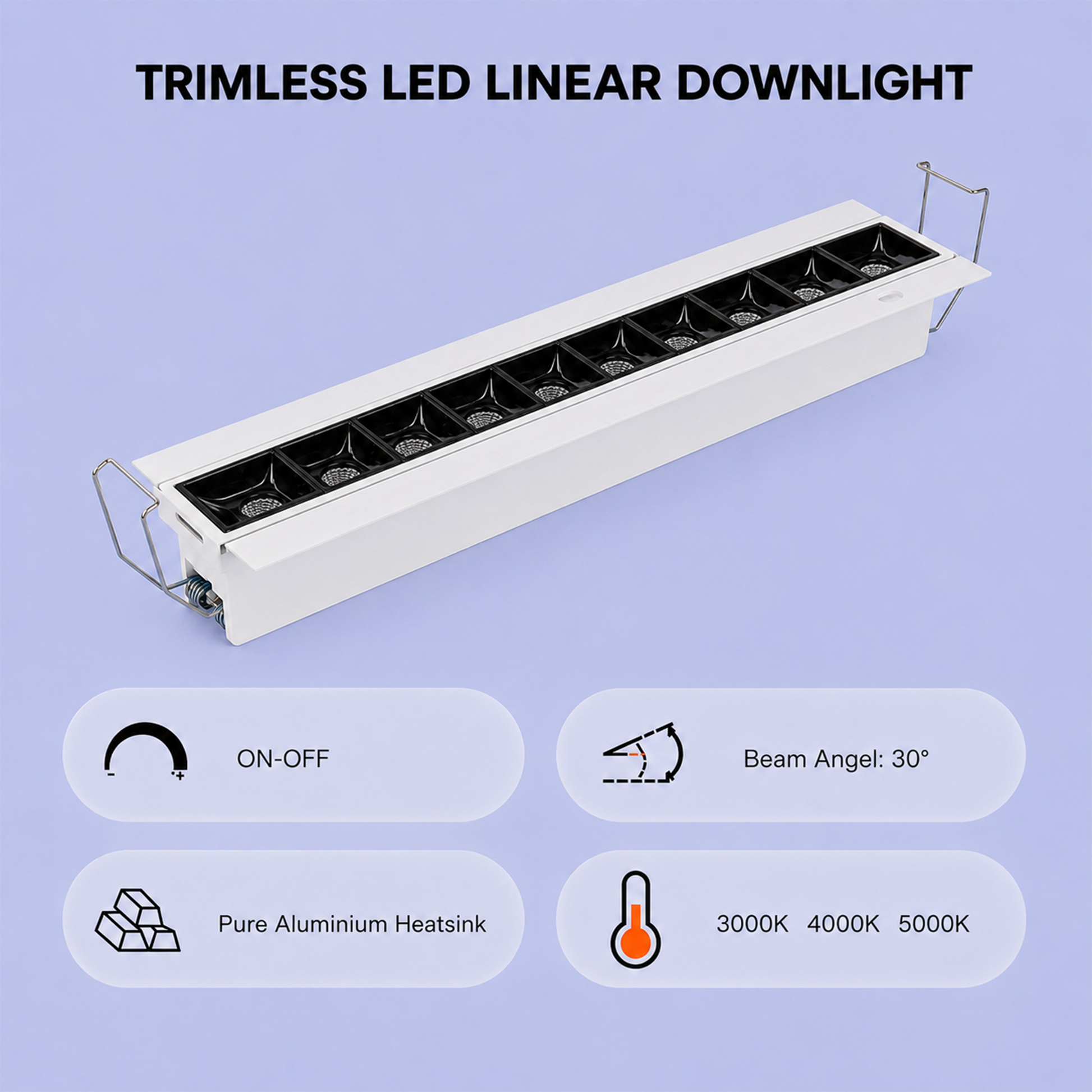

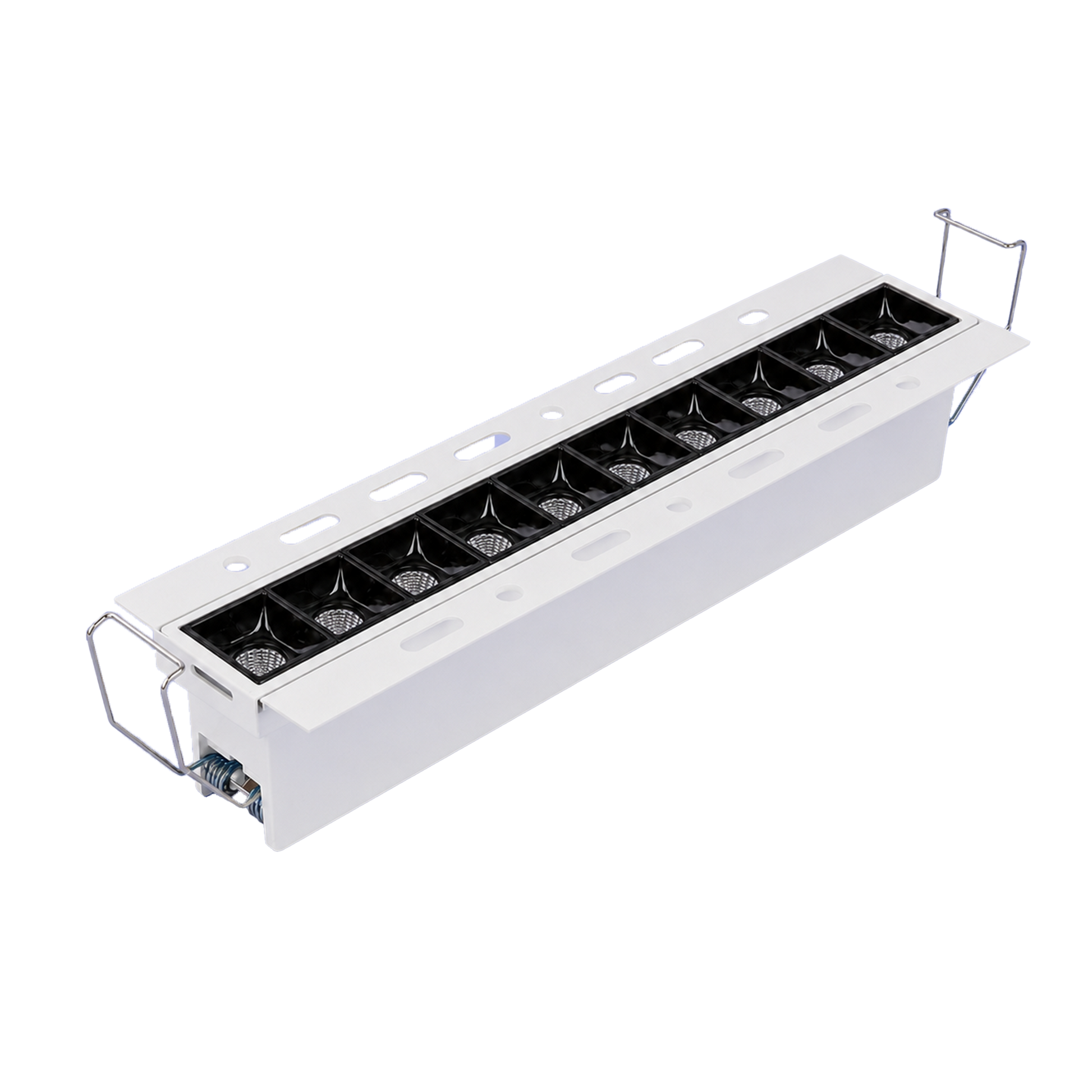

Linear Trimless Downlight IKON-DL04-12W-TL

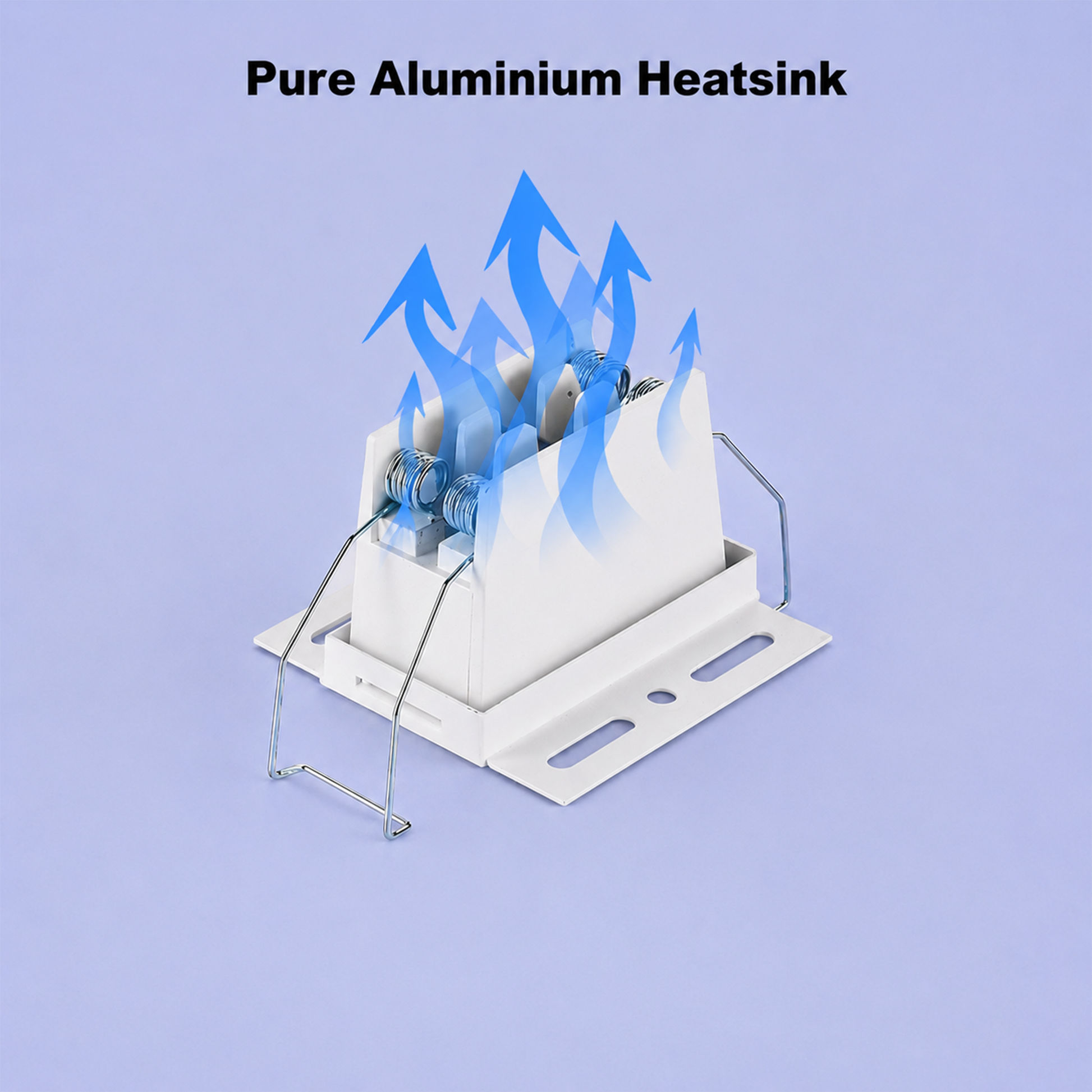

This Linear Trimless Downlight features a high-performance pure aluminum heat sink designed for superior heat dissipation, maintaining a stable operating temperature of 65–70°C. Engineered for seamless, trimless installation, this recessed fixture is designed to be integrated directly into the ceiling structure, providing a perfectly flush and "invisible" architectural finish. The premium construction includes branded OSRAM LED chips, a precision acrylic lens, and specialized anti-glare reflectors that guarantee light decay remains below 21% after 5 years of operation. Unlike traditional fixtures, its clean linear silhouette and trim-free design allow it to blend flawlessly with modern interiors. Equipped with a deep-set reflector system that achieves a UGR of less than 19, it delivers powerful, targeted illumination without dazzling the eyes. Consequently, it is a preferred solution for luxury hotels and high-end residential projects where a minimalist aesthetic and a professional, seamless mounting method.

Model: IKON-DL04-12W-TL

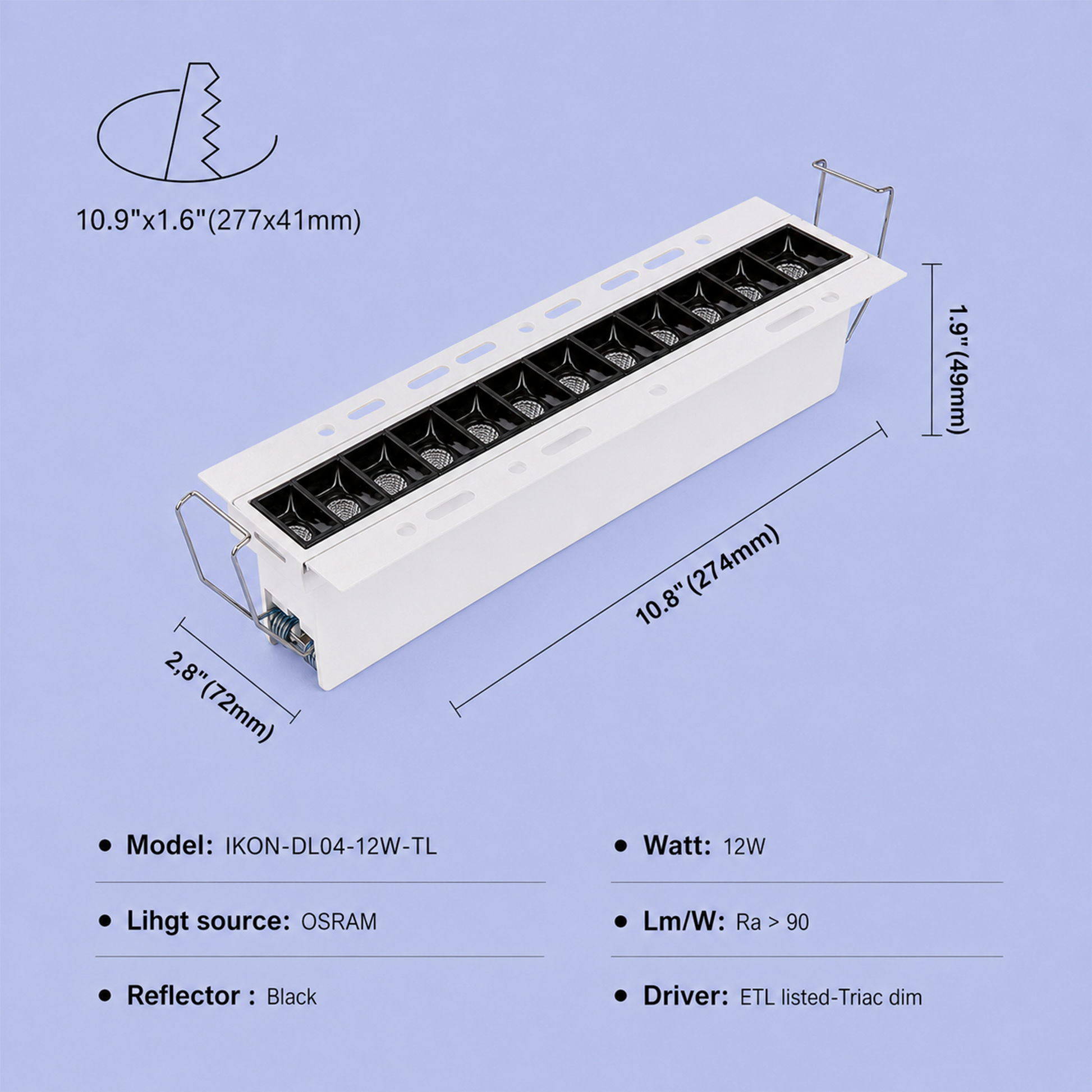

Size: L10.8"(274mm) x W2.8"(72mm) x H1.9"(49mm)
Cut Size: suitable for 10.9"x 1.6"(277x41mm)
Watt: 12W
Input Voltage: 120-277V
CCT: 3000K
CRI Ra>90
LED Chip:OSRAM
Beam Angle: 30 degrees
Dimmable at Vin= 120Vac
LED Driver: ETL listed-Triac dim
White housing + Black reflector
