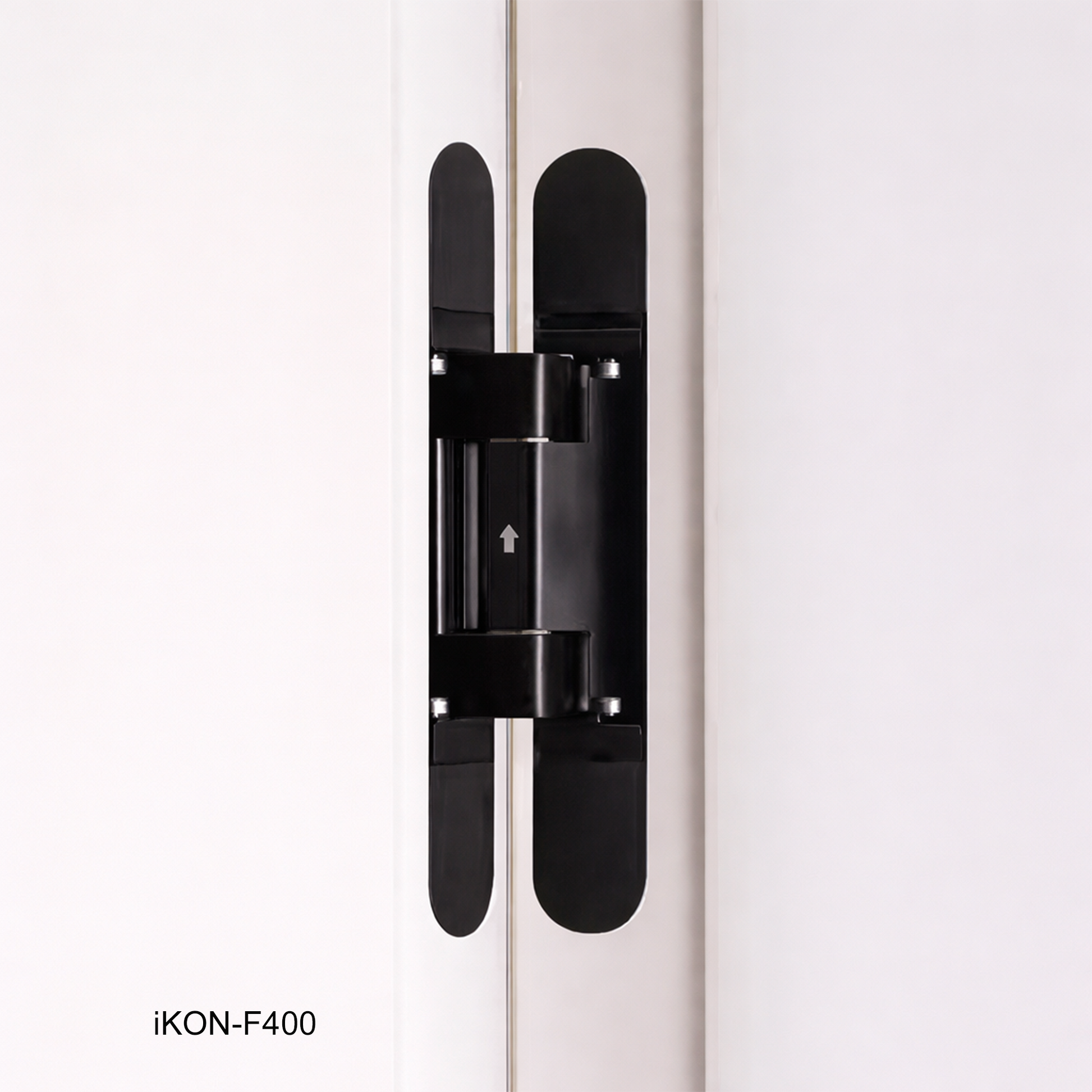

Buffer Concealed Hydraulic Hinge iKON-F400 (7.64"x1.18")
The iKON-F400 is a premium, heavy-duty concealed hinge featuring an integrated hydraulic buffer mechanism. This "invisible" hardware not only supports the door but also provides a smooth, controlled self-closing action, eliminating the need for bulky surface-mounted door closers. It is the perfect choice for high-end minimalist interiors where clean lines and silent operation are paramount.
Key Features:

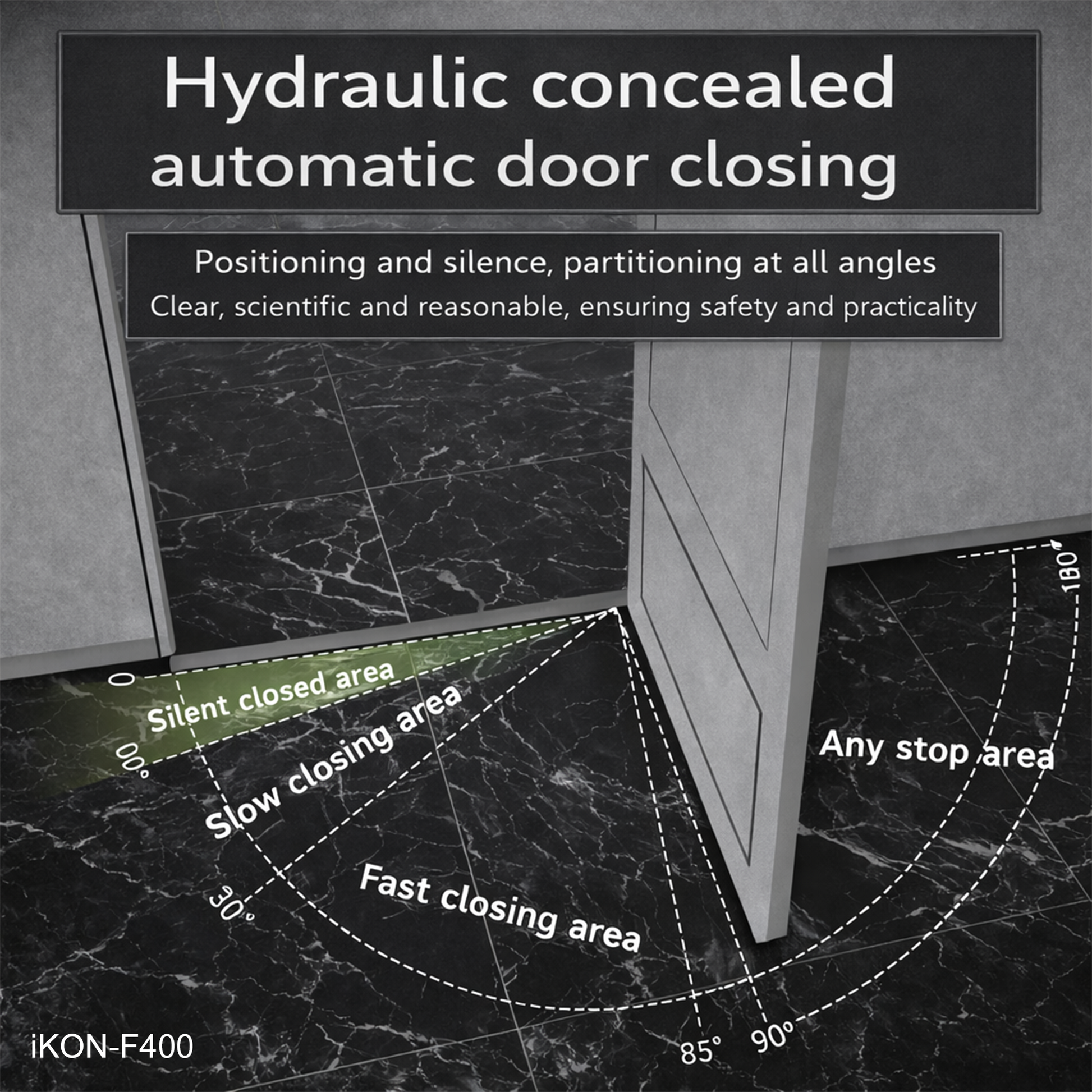

Integrated Hydraulic Buffer: Features a built-in soft-close (buffer) system that prevents door slamming and ensures a quiet, gentle closure every time.

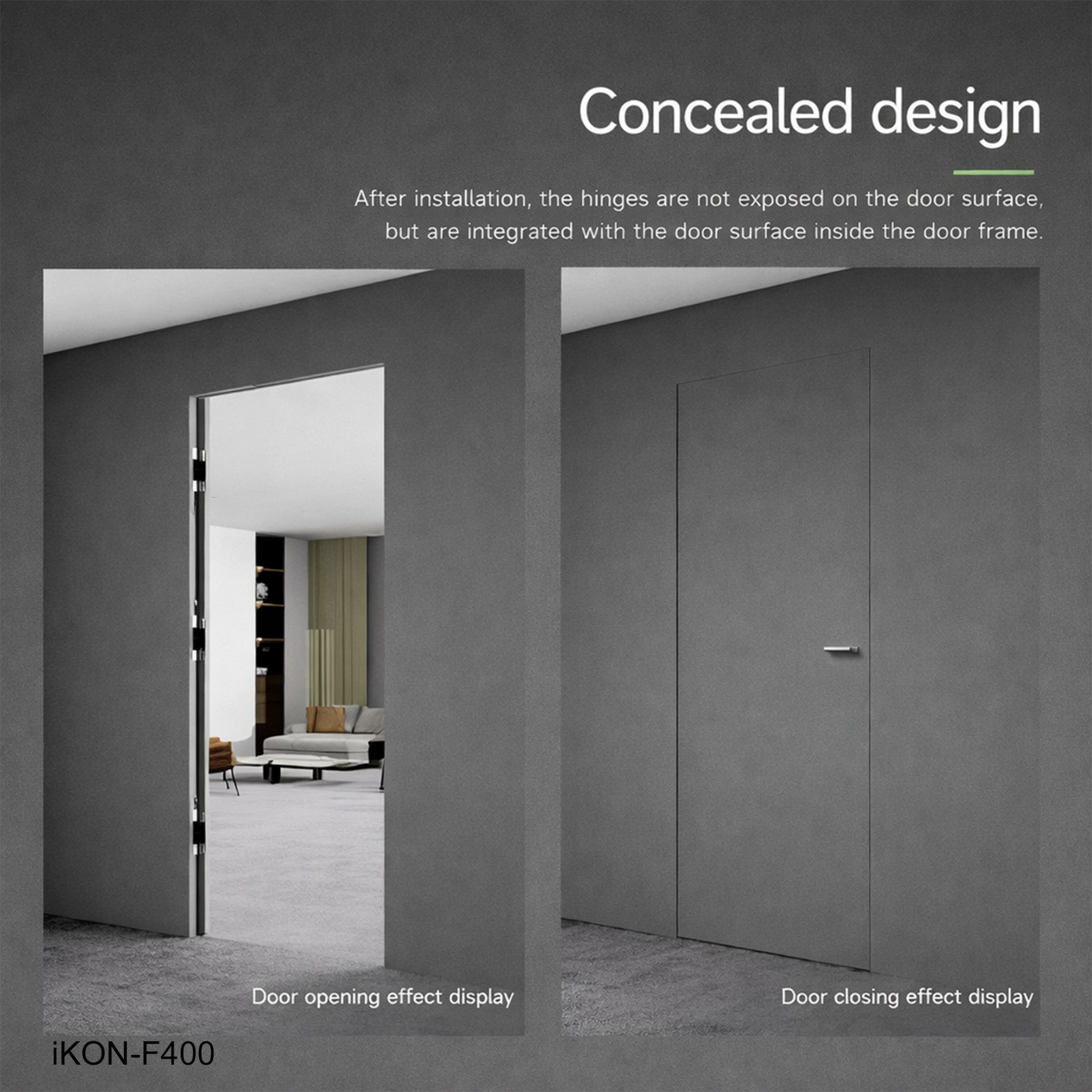

Fully Concealed Design: When the door is closed, the hinge is completely invisible, maintaining the aesthetic integrity of your door and frame.
High Load Capacity: Engineered to support up to 88 lbs (40 kg) per single hinge, making it suitable for heavy solid-core wooden doors.

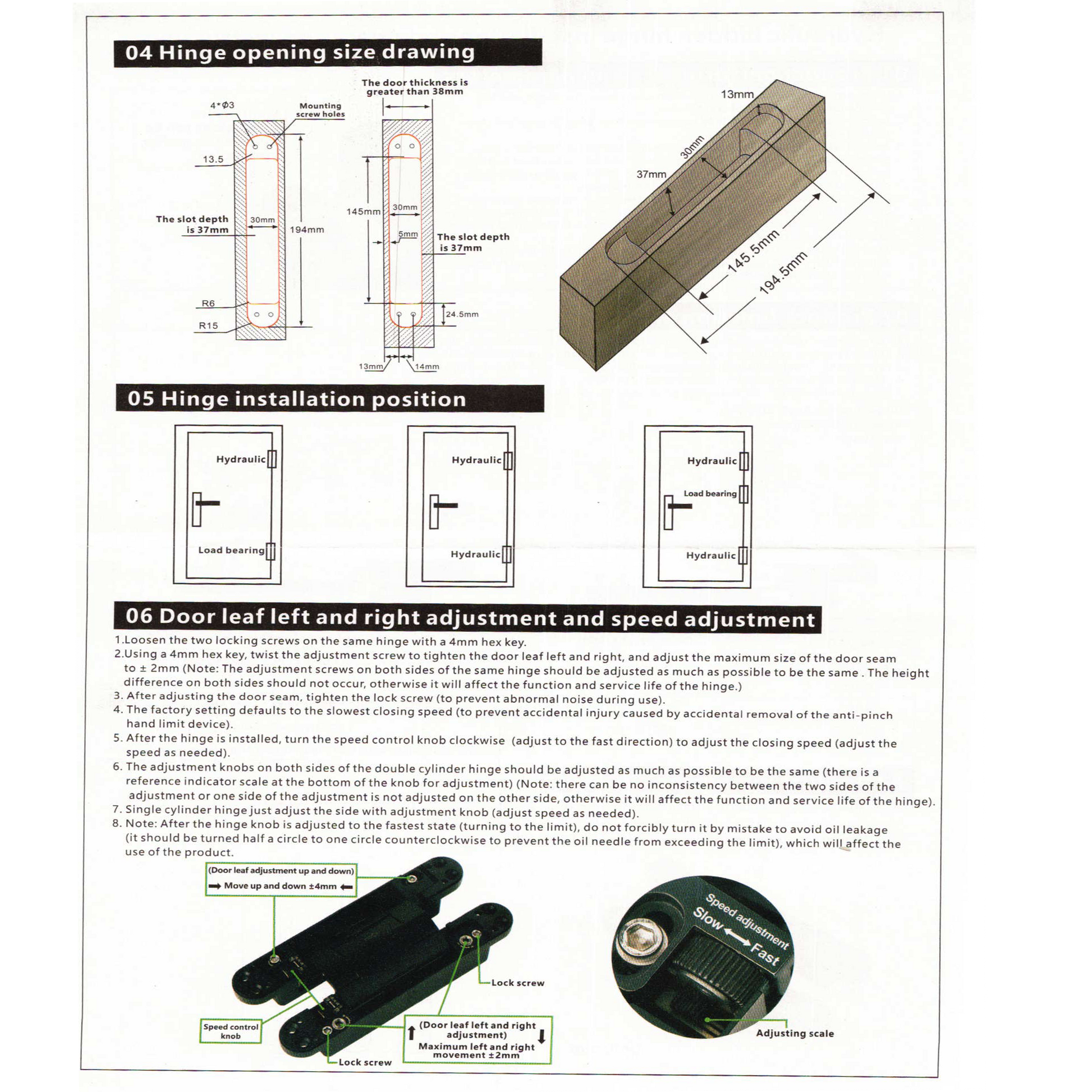

3D Adjustable: Allows for precise door alignment after installation for a perfect fit.
Wide Opening Angle: Supports a maximum opening of 180 degrees, providing full access through the doorway.
Durability Tested: Rated for a service life of more than 300,000 cycles, ensuring years of reliable performance.

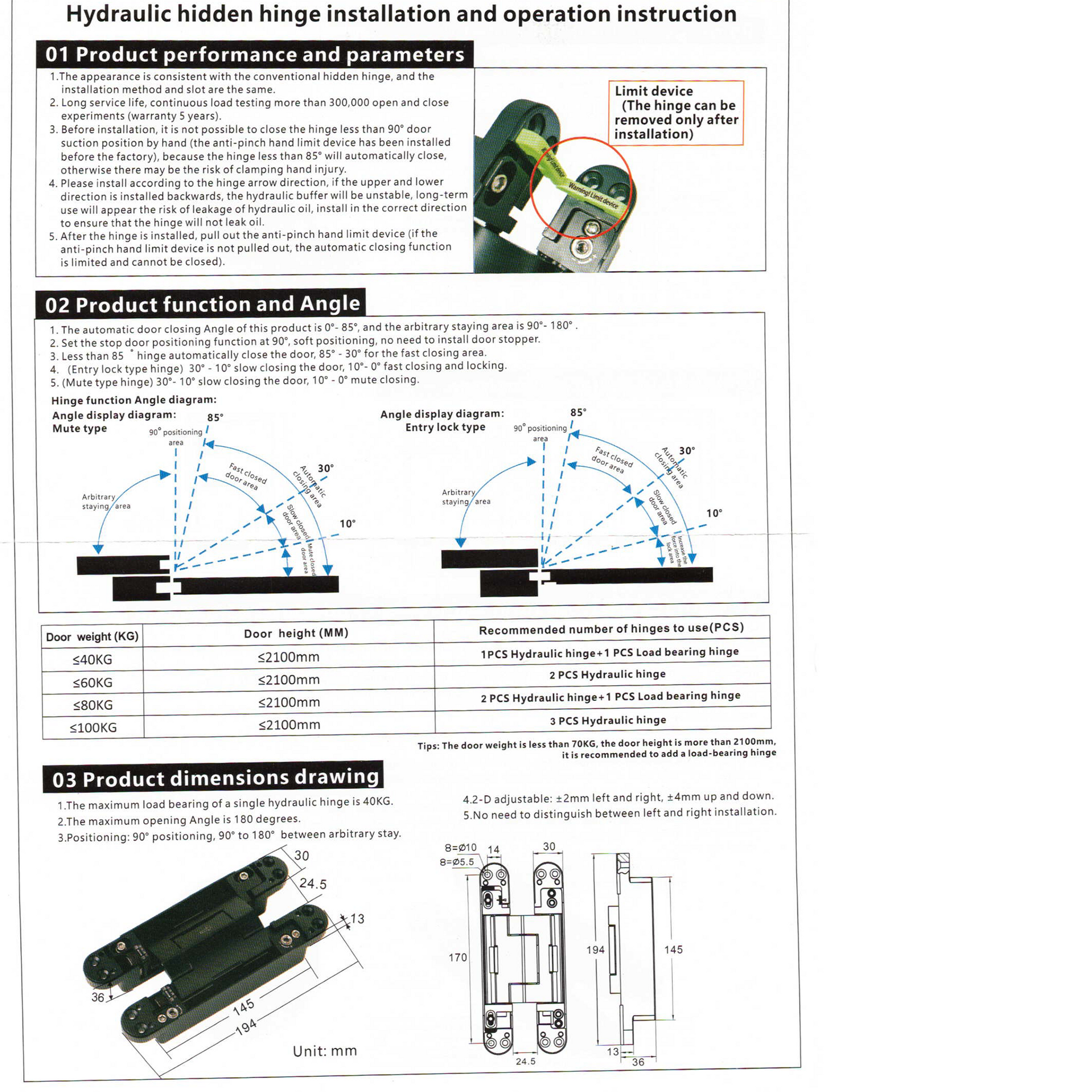

Technical Specifications:
Model: iKON-F400
Material: High-strength Zinc Alloy

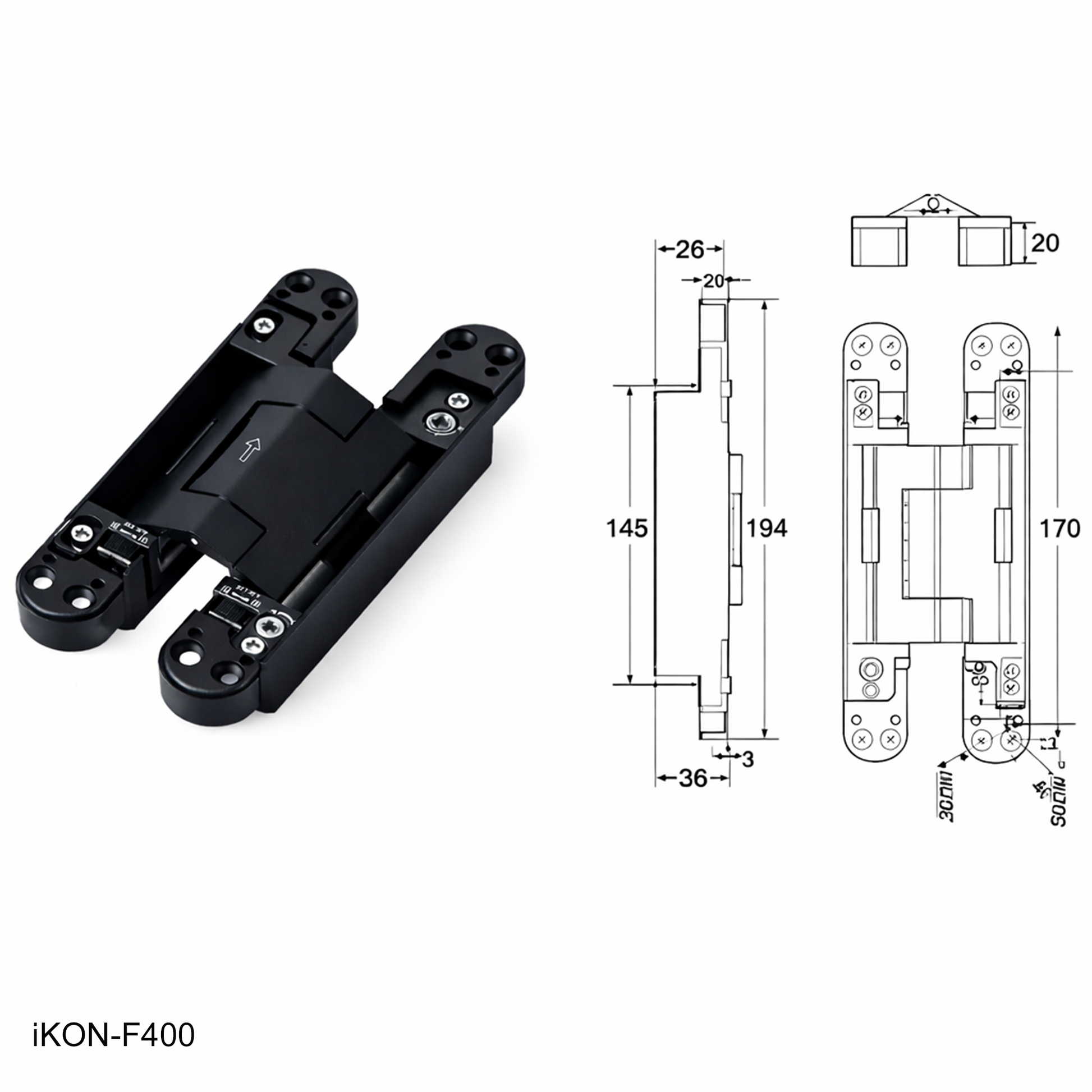

Dimensions: 7.64" x 1.18" (194 mm x 30 mm)
Door Thickness: Minimum 1.57"(40 mm)
Maximum Bearing Capacity: 88 lbs (40 kg) per piece
Operating Temperature: Resistant to extreme conditions from -30°C to 50°C.
Application: Ideal for wooden doors in hotels, luxury residences, offices, and hospitals.
