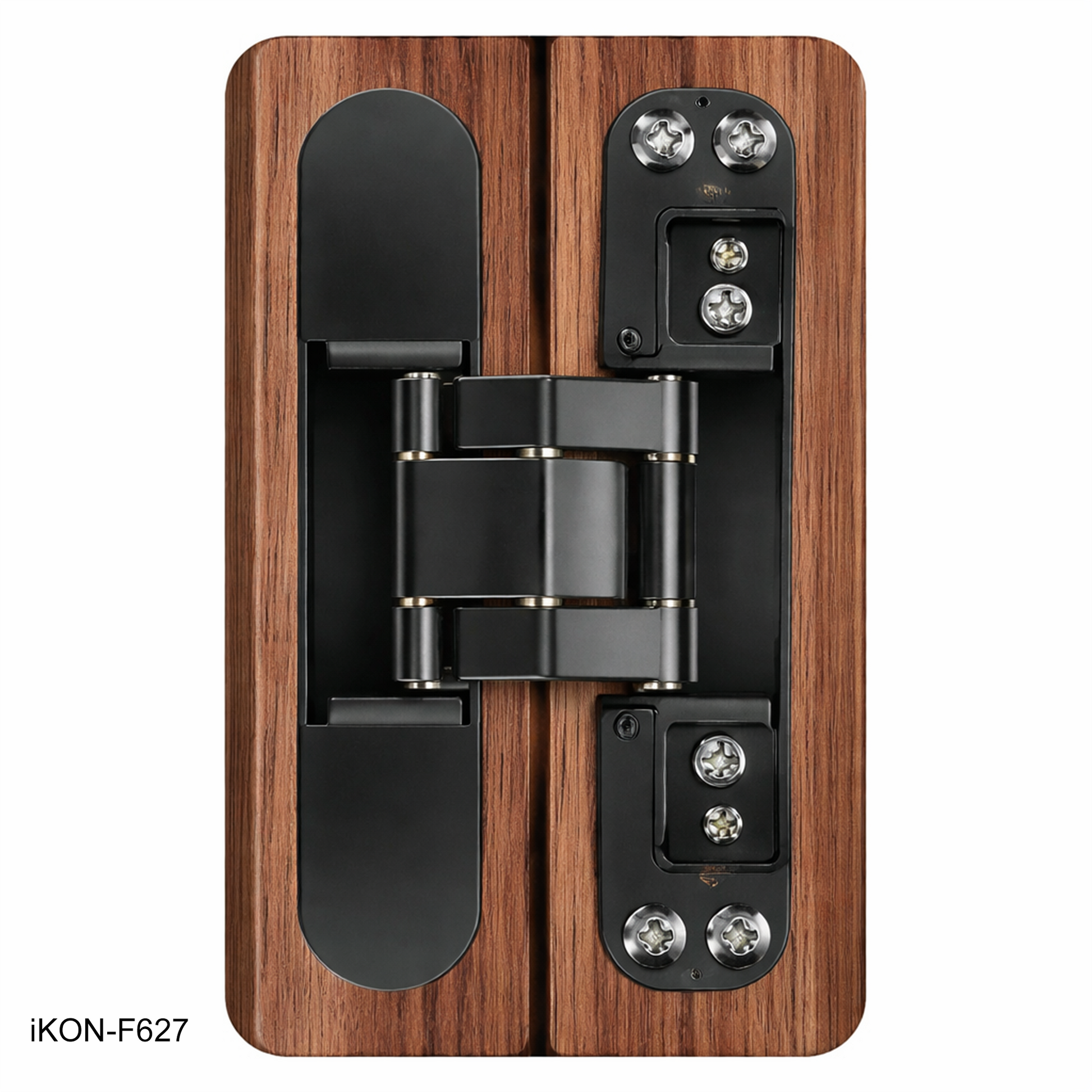

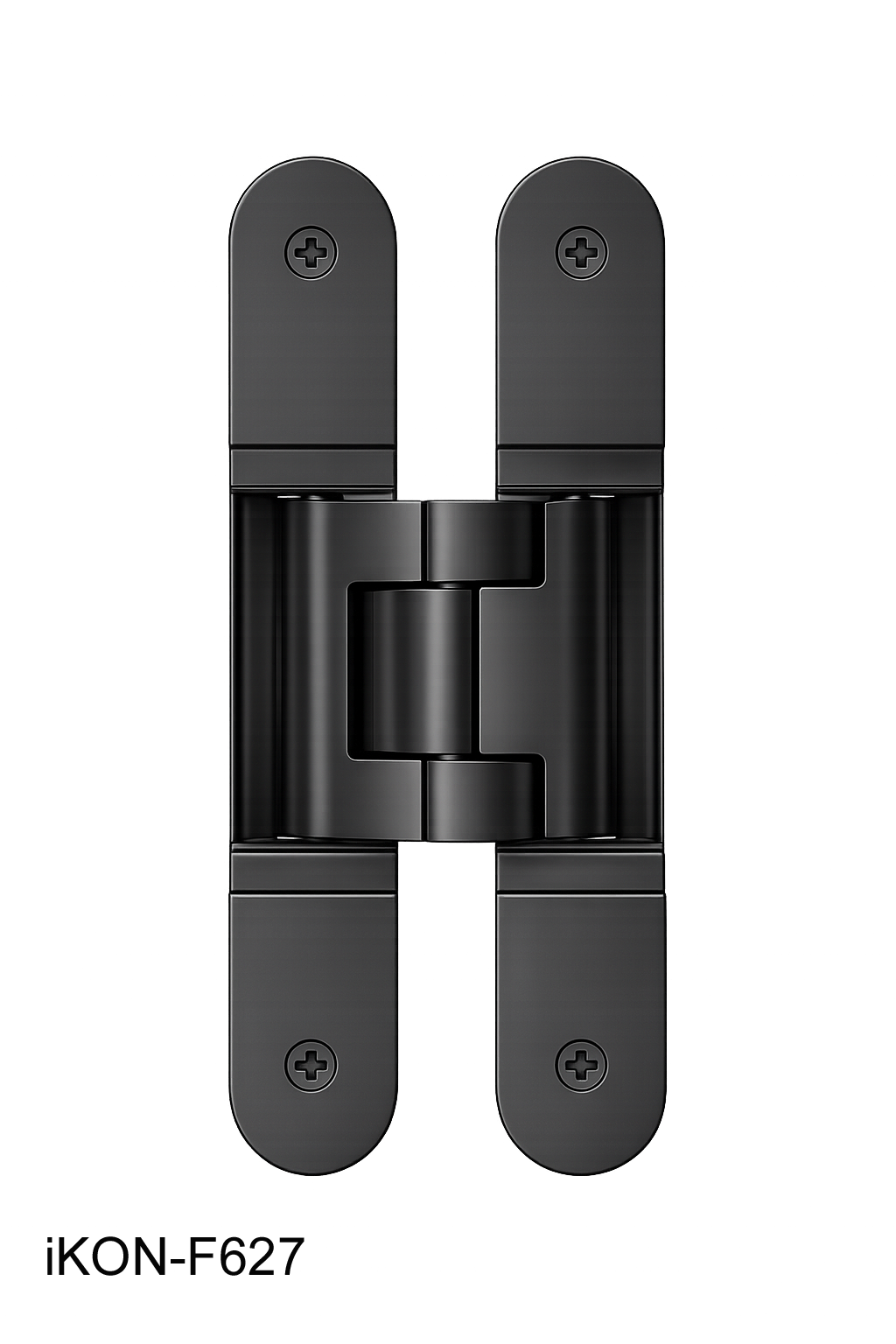

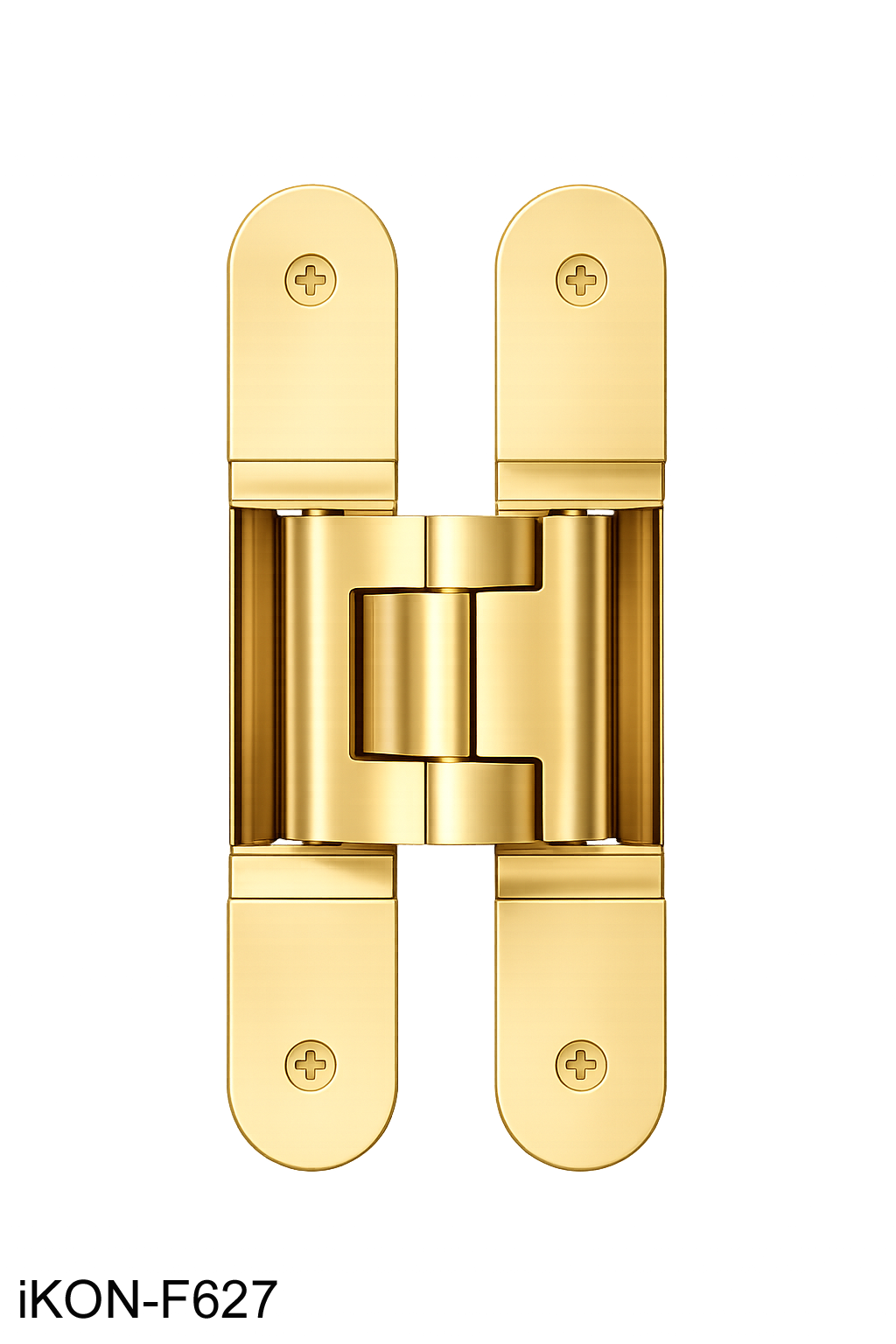

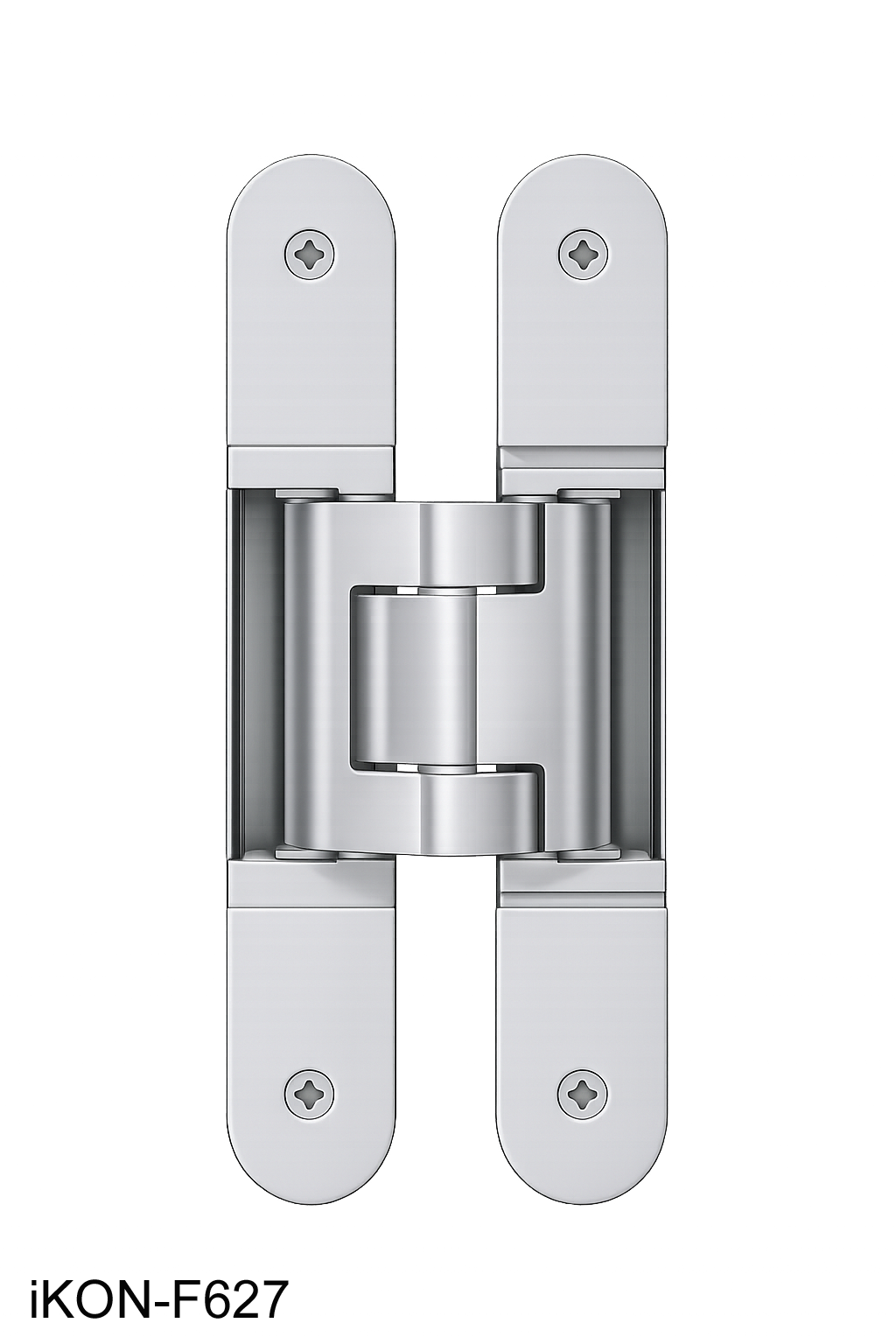

Door hinge iKON-F627

Engineered from high-density zinc alloy using an integrated die-casting process, these concealed/hidden hinges offer superior strength and rust resistance. Designed for long-term durability, they provide a stable bearing capacity that ensures your doors remain perfectly aligned for years without sagging.
These hinges are specifically designed for heavy-duty doors with a thickness of 40mm or greater. To ensure a seamless fit and avoid the hassle of returns, please verify your door measurements before placing your order.

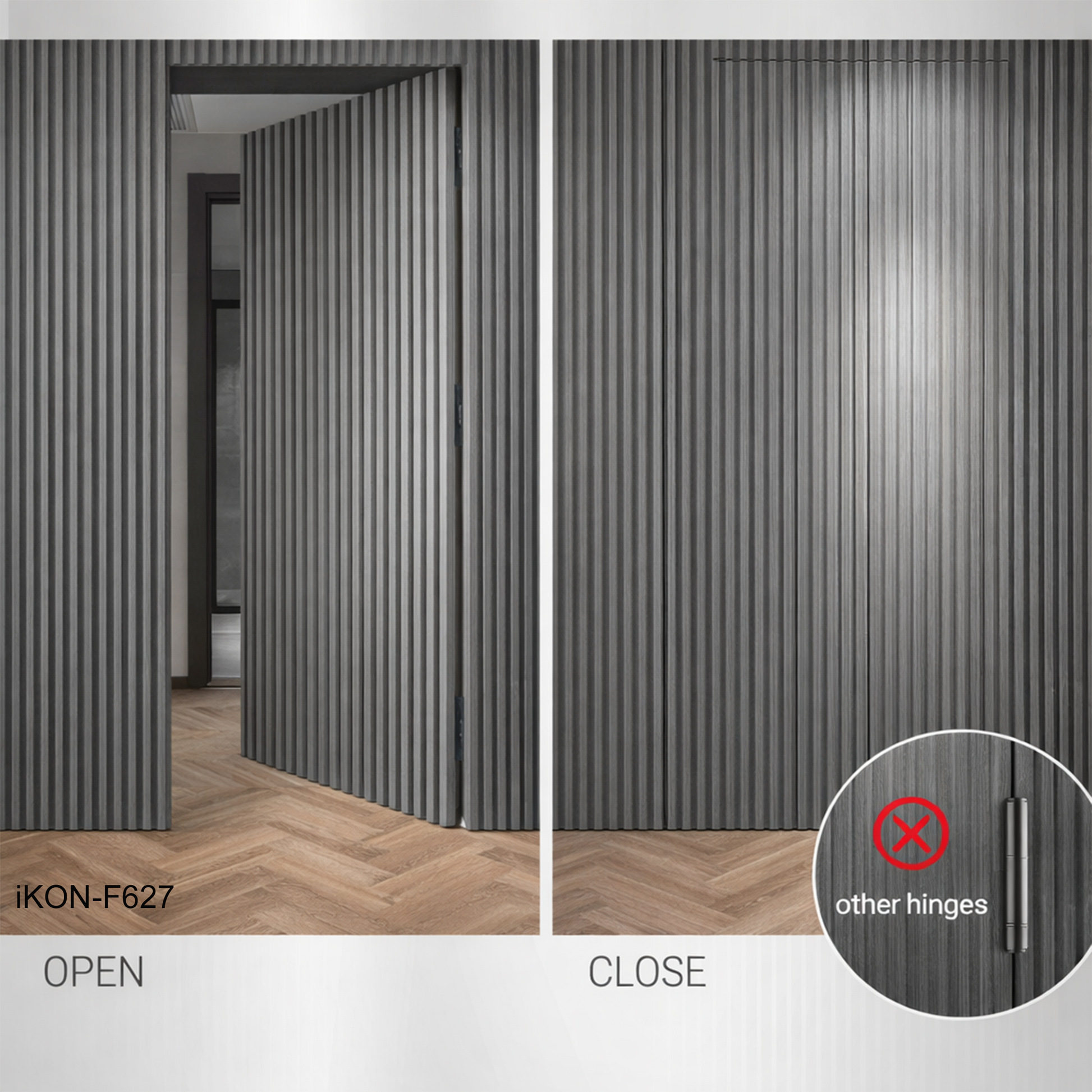

Achieve a sleek, modern aesthetic with hinges that are completely hidden when the door is closed. By removing visible hardware, these hinges allow your doors to blend perfectly with flush-wall designs, secret rooms, or high-end cabinetry, enhancing the overall architectural appeal of your space.
Forget the frustration of re-hanging doors. Our 3D adjustable technology allows for effortless alignment after installation: ± 3mm Vertical, ± 2mm Horizontal, and ± 1mm Depth. You can fine-tune the door's position (inward/outward, left/right) using only an Allen wrench.
Equipped with internal friction-reducing spacers (including high-quality copper components), these hinges guarantee a silent, fluid opening and closing experience. Ideal for bedrooms, offices, and study areas where noise reduction is essential for comfort.
With a standard height of approx. 6 inches (160mm) ,width 1.1 inch (28mm) and a deep-seated mortise design, these hinges are compatible with solid wood up to 80 kg /2pcs, metal-framed, and commercial-grade doors. Perfect for DIY secret bookshelf doors, folding partitions, and modern interior renovations.
width frame 1.1 inch( 28mm)/lift
depth frame 1.22inch (31mm)/lift
