48V Magnetic Track Lighting Connector (IKON-MAG-P2)
48V Magnetic Track Lighting Connector (IKON-MAG-P2)
Regular price
$20.00 CAD
Regular price
Sale price
$20.00 CAD
Quantity
Couldn't load pickup availability

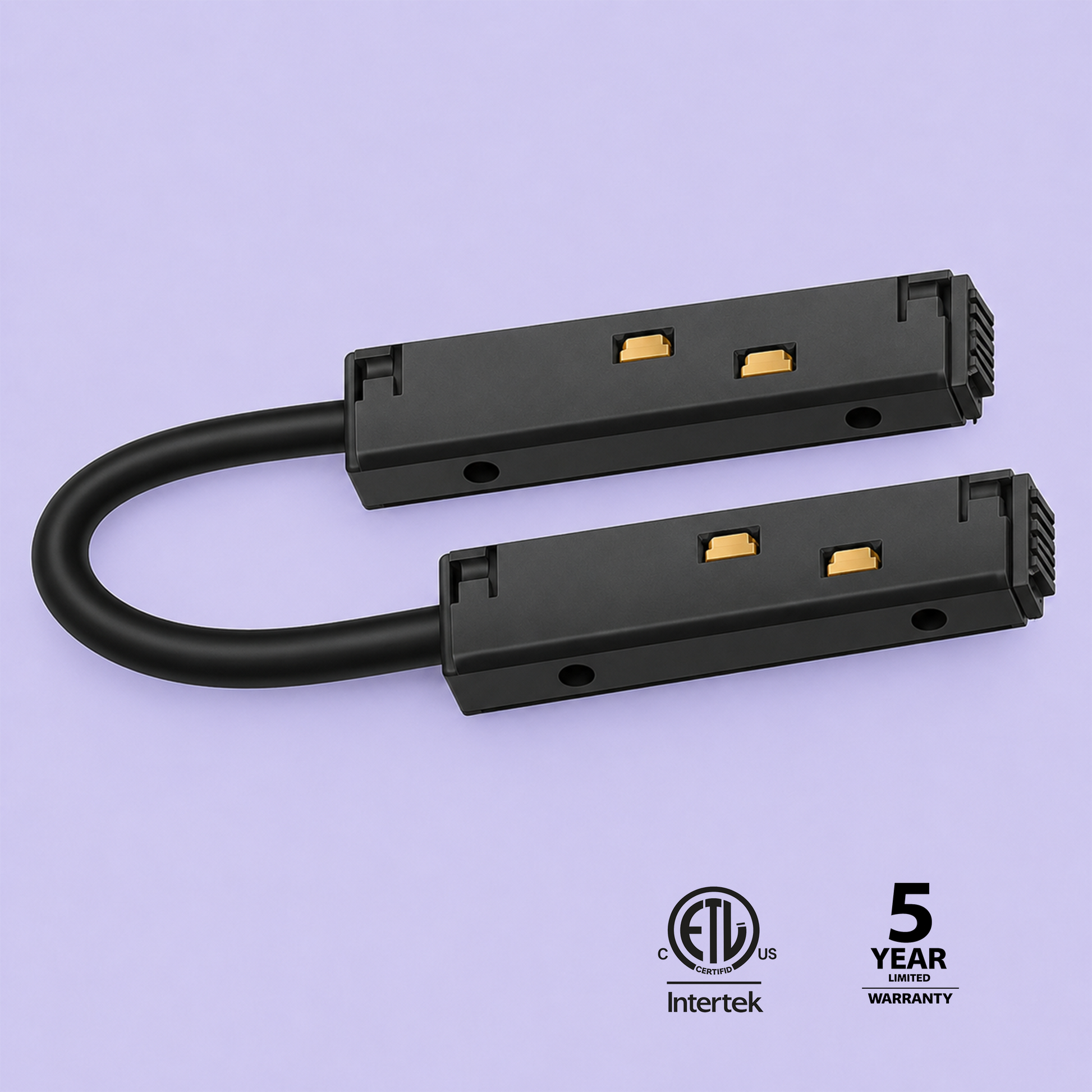

48V Magnetic Track Lighting Connector (IKON-MAG-P2) is a flexible joint connector designed to provide electrical continuity between two segments of the Slim Series magnetic track at various angles. It is used for creating seamless transitions between corners, walls, or wall-to-ceiling joints, allowing the lighting system to follow complex architectural contours. This component is compatible with 48V DC magnetic track systems with an internal slot width of 17mm–18mm, supports a maximum power load of 100W, and is ETL certified (UL 1574 & CSA C22.2) to ensure professional safety standards.
Dimensions: 3.74"(95mm )(L) x 0.63"(16mm) (W) x 0.8(20mm) (H) - (1 piece).
L cable 5.31"(135mm)
Flexible Joint: For corner or wall-to-ceiling transitions.
Voltage: 48V DC (Safe Low Voltage).
Max Load: 100W per line.
Safety Standards: ETL Listed .
Compatibility: Fits magnetic tracks with an internal slot width of 0.71"(17mm - 18mm).
Warranty: 5 years
Certifications: ETL
